Model T4

Borg-Warner 4-Speed Transmission

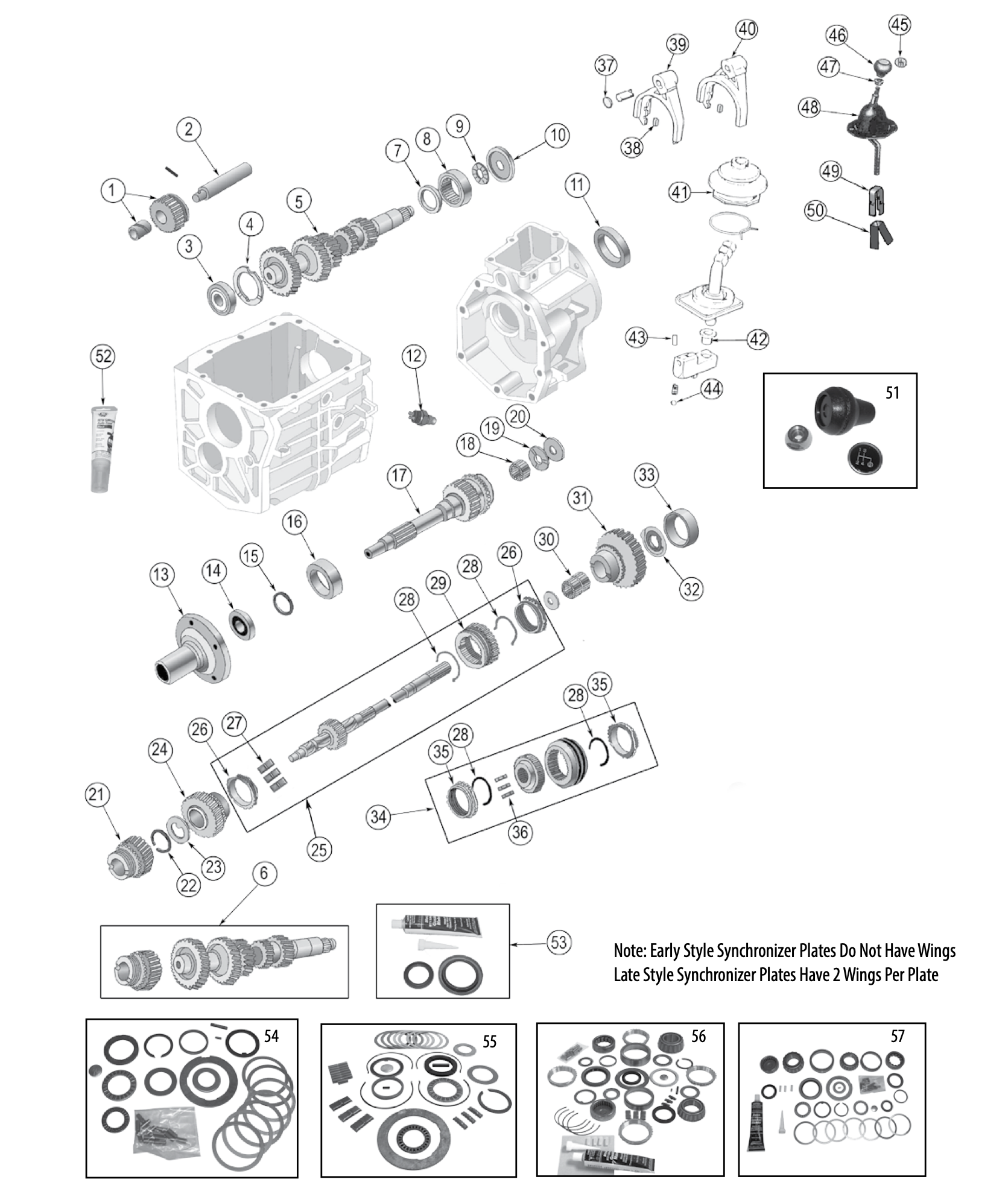

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Comments	Part No.
1	Gear, Reverse Idler		J8134038
2	Shaft, Reverse Idler		J8134039*
3	Bearing, Cluster Gear	Front	J8134033*
4	Thrust Washer, Cluster Gear	Front	J8134032
5	Cluster Gear	37-34-23-15-14 Teeth 37-32-23-15-14 Teeth	J8134031* 83500970
6	Cluster Gear Kit	Incl. 27T 3rd Gear and Cluster Gear	83500970K
7	Spacer, Cluster Gear Bearing		J8134035
8	Bearing, Cluster Gear	Rear	J8134036
9	Bearing, Cluster Gear	Needle Thrust Bearing	J8134034
10	Race, Cluster Gear Thrust		J8134037
11	Seal, Output		J8132672
12	Switch, Back Up Lamp		J8134068
13	Retainer, Bearing	Front	J8134013
14	Seal, Input		J8132779
15	Shim Set, Input Bearing		J8134016
16	Bearing, Input Shaft	Front	J8134015
17	Shaft, Input	10 Spline 14 Spline	83500975 83500968
18	Bearing, Input Shaft	Needle Bearing; 15 Required	J8127397
19	Bearing, Thrust		J8134018
20	Washer, Thrust Bearing		J8134170
21	Gear, 3rd	29 Teeth 27 Teeth	83500285 83500380
22	Snap Ring, Main Shaft		J8127424
23	Washer, Thrust		J8134025
24	Gear, 2nd		J8134024*
25	Main Shaft Assembly	w/o Needle Roller 1st Gear w/ Needle Roller 1st Gear	83501166 83500963*
26	Blocking Ring Set	1st and 2nd; Includes 2 Rings	J8127403
27	Plate, Synchronizer	2nd Gear; 3 Required	J8127401
28	Spring, Synchronizer	4 Required	J8134021
29	Slider	1st and Reverse	1351070002
30	Needle Bearing, 1st Gear	84/86	83500969
31	Gear, 1st	Used w/o Needle Rollers Used w/ Needle Rollers	83501103* 83500965*
32	Washer, Thrust		83500964
33	Bearing, Output Shaft		J8134030
34	Synchronizer Assembly	3rd and 4th	83510192*
35	Blocking Ring Set	3rd and 4th; Includes 2 Rings	J8134058
36	Plate, Synchronizer	3rd and 4th; Late Style, 3 Required 3rd and 4th; Early Style, 3 Required	83510193 J8127418
37	Plug, Shift Rail		J8127473
38	Insert, Shift Fork		J8133418
39	Fork, Shift	3rd and 4th	J8134048
40	Fork, Shift	1st and 2nd	J8134049*
41	Boot, Shifter		J8134064
42	Sleeve, Shifter		83502930
43	Pin, Shift Lever		J8134040
44	Ball, Chrome		453593
45	Insert, Shift Knob		J3241067
46	Knob, Shift		J3241062
47	Nut, Shift Control		J4006495
48	Boot, Shifter		J5752010
49	Clip, Shift Lever		J3241239
50	Isolator, Shift Lever		J3241481
51	Shift Knob Kit		3241067K
52	RTV Silicone Sealant		J8993317
53	Gasket and Seal Kit	Includes Front and Rear Seals and RTV	T4T5GS
54	Small Parts Kit	Includes Bearings, Pins, Snap Rings, Shims, Plugs and Spacers	T450
55	Master Small Parts Kit	Includes #s 27, 28, 36, 54	T450MK
56	Master Overhaul Kit	Includes #s 26, 27, 28, 35, 36, 57	T4MASKIT
57	Master Bearing Kit	Includes Bearings, Seals, and Small Parts Kit	BKT4M

Note: Early Style Synchronizer Plates Do Not Have Wings

Late Style Synchronizer Plates Have 2 Wings Per Plate

* Not Currently Available
