Model T5

Borg-Warner 5-Speed Transmission

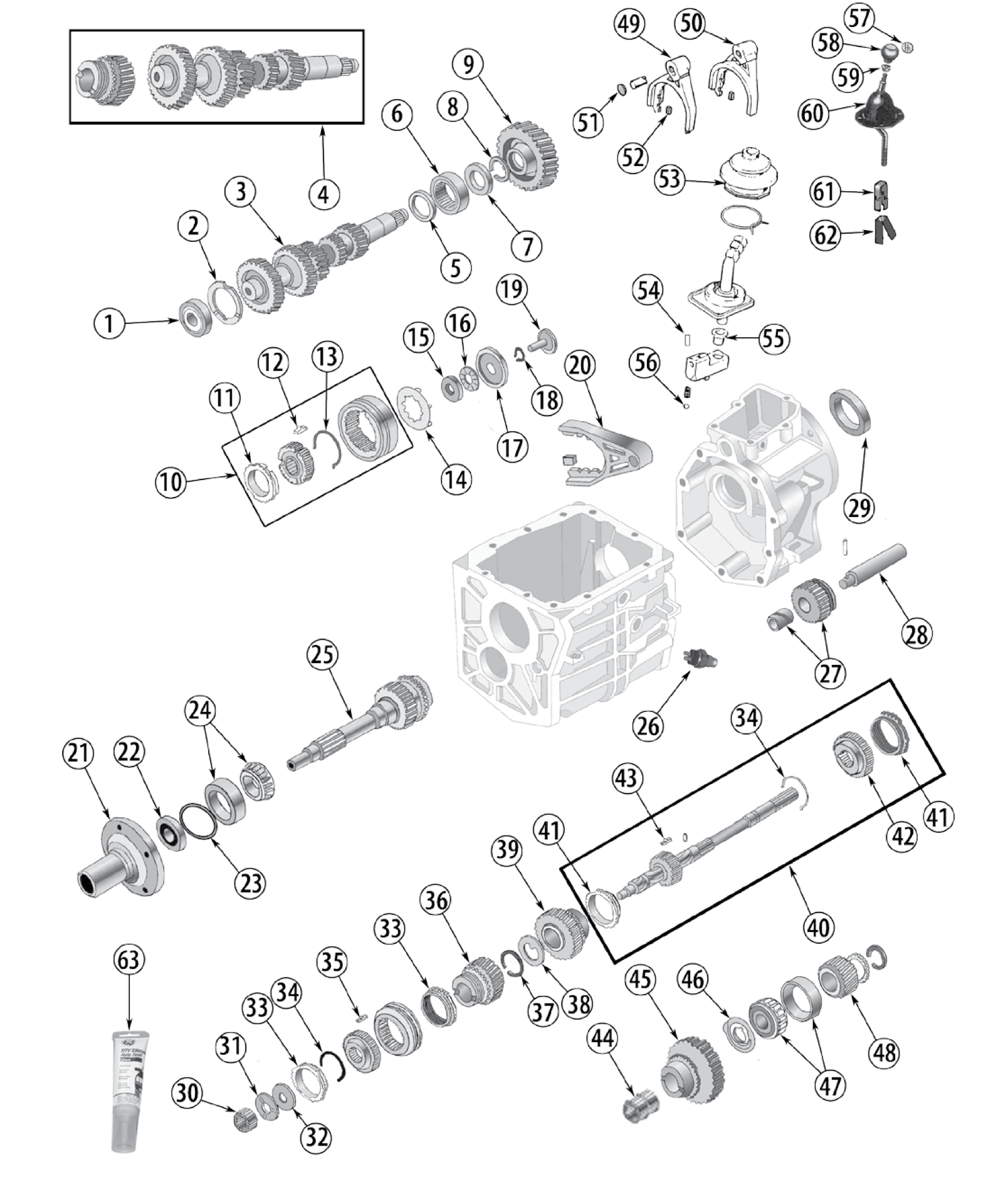

Borg-Warner T5 5-speed transmission. Numbered callouts match the table below.

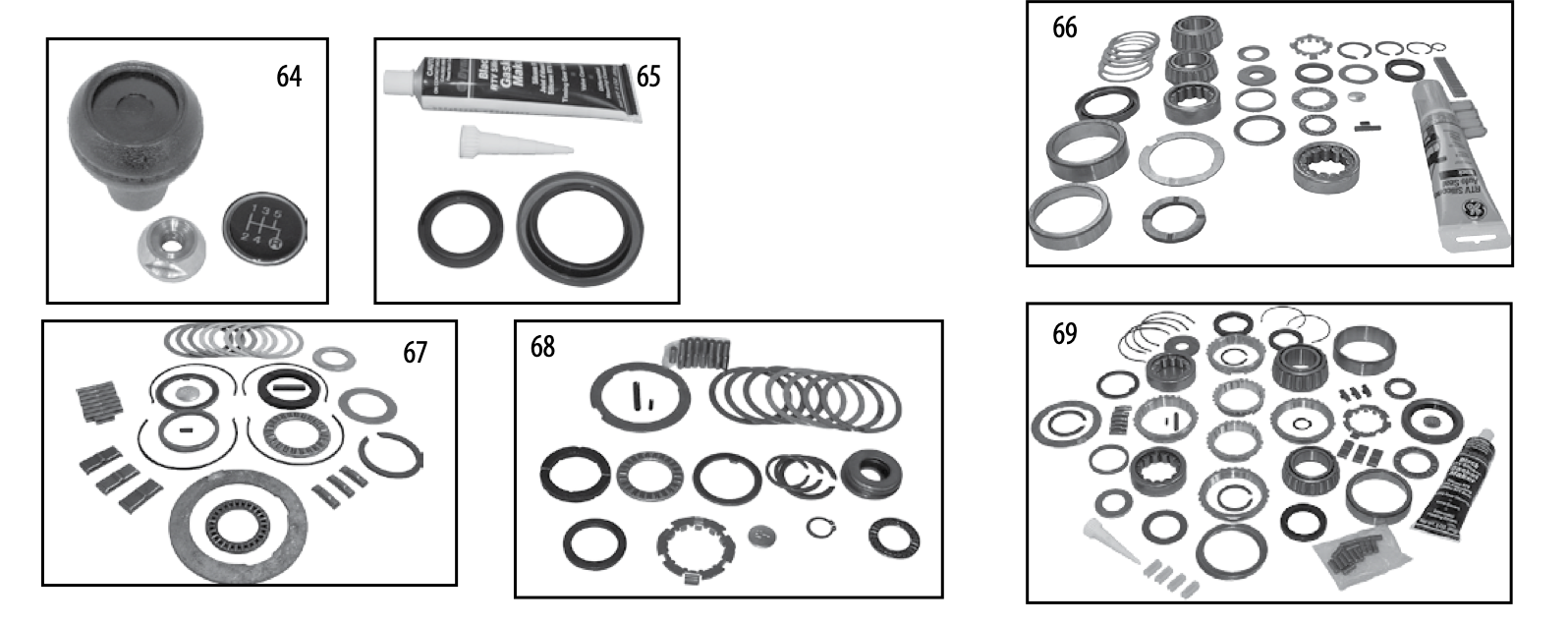

Borg-Warner T5 shift knob, sealant, and small parts kits. Numbered callouts match the table below.

Item numbers match the diagrams. Each part number searches Amazon for that Crown part.

Item #DescriptionCommentsPart No.
1 Bearing, Cluster Front J8134071
2 Thrust Washer, Cluster Gear Front J8134070
3 Cluster Gear
 		 37-32-23-15-14-26 Teeth
37-34-23-15-14-26 Teeth		 83500967
J8134069
4 Cluster Gear Kit Includes 27T 3rd Gear and Cluster Gear 83500967K**
5 Spacer, Cluster Gear Rear J8134035
6 Bearing, Cluster Rear J8134036
7 Spacer, Cluster Gear   J8134072
8 Snap Ring, Cluster Gear   J8134073
9 Gear, 5th
 		 53 Teeth
51 Teeth		 J8134083*
J8134084*
10 Synchronizer Assembly 5th Gear J8134086
11 Blocking Ring Set 5th Gear; Includes 2 Rings J8127415
12 Plate, Synchronizer 5th Gear; 3 Required J8127418
13 Spring, Synchronizer 5th Gear; 2 Required J8127419
14 Retainer, 5th Gear   J8134087
15 Washer, Thrust Bearing   J8134088
16 Bearing, Cluster Gear Needle Thrust Bearing J8134034
17 Race, Rear Cluster Gear Thrust Washer   J8134037
18 Snap Ring, Cluster Gear   J8134082
19 Funnel   J8134090*
20 Fork, Shift 5th Gear J8134085*
21 Retainer, Front Bearing   J8134013
22 Seal, Input   J8132779
23 Shim Set, Input Bearing Retainer   J8134016
24 Bearing and Cup, Input Shaft Front J8134015
25 Shaft, Input
 		 10 Splines
14 Splines		 83500975
83500968
26 Switch, Back Up Lamp   J8134068
27 Gear, Reverse Idler   J8134038
28 Shaft, Reverse Idler   J8134039*
29 Seal, Output   J8132672
30 Bearing, Input Shaft 15 Required J8127397
31 Bearing, Thrust   J8134018
32 Washer, Thrust Bearing   J8134017
33 Blocking Ring Set 3rd and 4th; Includes 2 Rings J8134058
34 Spring, Synchronizer 3rd and 4th; 2 Required J8134021
35 Plate, Synchronizer
 		 3rd and 4th; Early Style, 3 Required
3rd and 4th; Late Style, 3 Required		 J8127418
83510193
36 Gear, 3rd
 		 29 Teeth
27 Teeth		 83500285
83500380
37 Snap Ring, Main Shaft   J8127424
38 Washer, Thrust   J8134025
39 Gear, 2nd   J8134024*
40 Main Shaft Assembly
 		 w/o Needle Bearing First Gear
w/ Needle Bearing First Gear		 83501166
83500963*
41 Blocking Ring Set 1st and 2nd; Includes 2 Rings J8127403
42 Slider 1st and Reverse 1351070002
43 Plate, Synchronizer 2nd Gear; 3 Required J8127401
44 Needle Bearing, 1st Gear 84/86 83500969
45 Gear, 1st
 		 w/o Needle Bearings
w/ Needle Bearings		 83501103*
83500965*
46 Washer, Thrust   83500964
47 Bearing and Cup, Output Shaft   J8134030
48 Gear, 5th
 		 23 Teeth
25 Teeth		 J8134080*
J8134081*
49 Fork, Shift 3rd and 4th J8134048
50 Fork, Shift 1st and 2nd J8134049*
51 Plug, Shift Rail   J8127473
52 Insert, Shift Fork   J8133418
53 Boot, Shifter   J8134064
54 Pin, Shift Lever   J8134040
55 Sleeve, Shifter   83502930
56 Ball, Chrome   453593
57 Insert, Shift Knob   J3241073
58 Knob, Shift   J3241062
59 Nut, Shift Control   J4006495
60 Boot, Shifter   J5752010
61 Clip, Shift Lever   J3241239
62 Isolator, Shift Lever   J3241481
63 RTV Silicone Sealant   J8993317
64 Kit, Shift Knob Includes #s 57, 58, 59 3241073K
65 Gasket and Seal Kit Includes Front and Rear Seals Plus RTV Silicone Gasket T4T5GS
66 Master Bearing Kit Includes #s 1, 6, 22, 24, 29, 47, 52, 63, 68 BKT5M
67 Master Small Parts Kit Includes #s 13, 34, 35, 43, 68 T550MK
68 Small Parts Kit Includes Bearings, Pins, Snap Rings, Shims, Plugs and Spacers T550
69 Master Overhaul Kit Includes #s 11, 13, 33, 34, 35, 41, 43, 66 T5MASKIT

** Can Be Used to Replace Early 34 Tooth Cluster Gear

Early Style Synchronizer Plates Do Not Have Wings

Late Style Synchronizer Plates Have 2 Wings Per Plate

* Not Currently Available
