Model T85
Borg-Warner 3-Speed Transmission

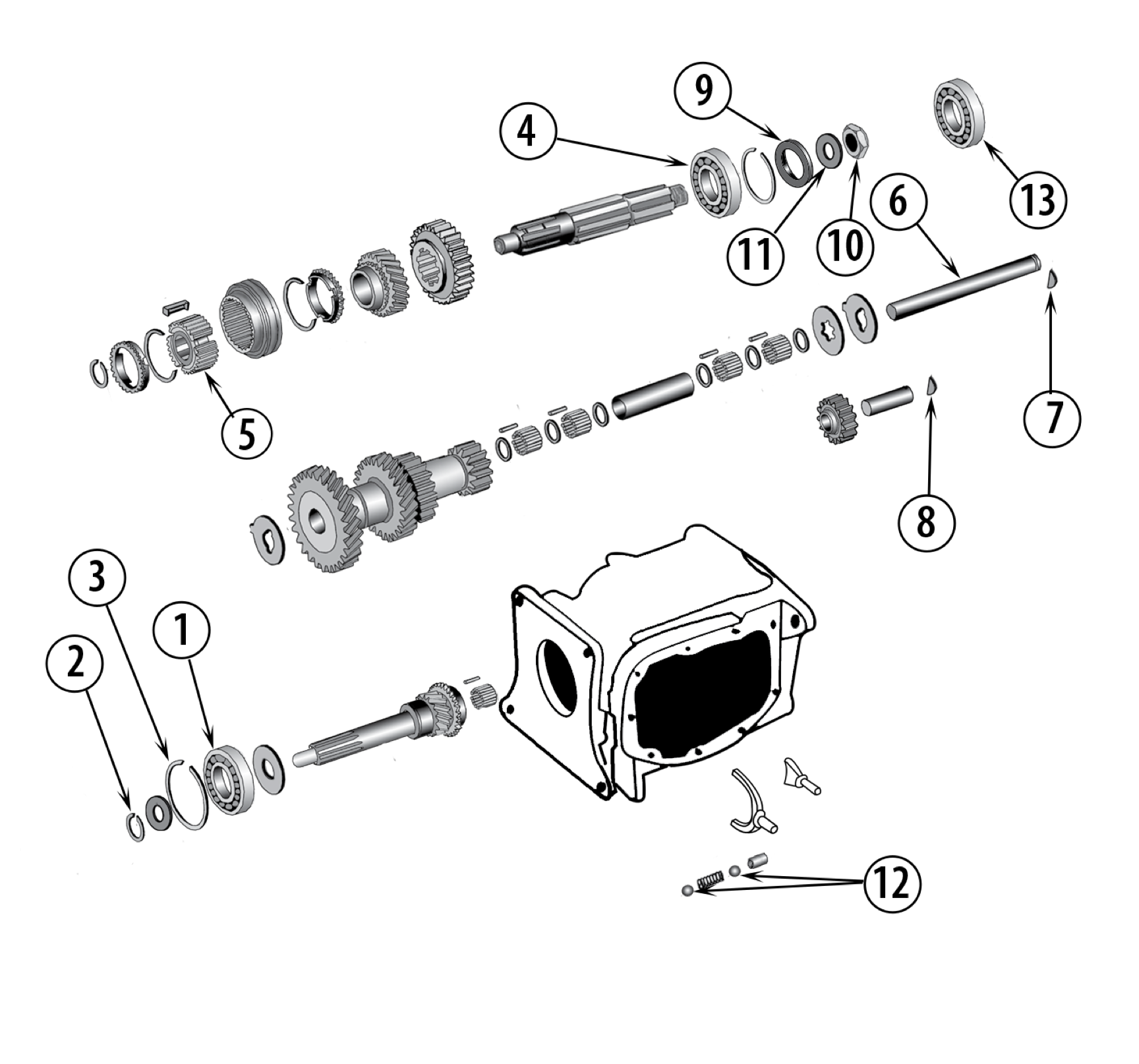

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Comments | Part No. |
|---|---|---|---|
| 1 | Input Bearing | Front | J0917068 |
| 2 | Snap Ring, Input Bearing |
Small; .089" Thick Small; .098" Thick |
J0932107 932111 |
| 3 | Snap Ring, Input Bearing | Large | 640782 |
| 4 | Bearing, Main Shaft | Rear | J8136619 |
| 5 | Hub, Synchronizer | 2nd and 3rd | J0943466 |
| 6 | Countershaft | J0932418* | |
| 7 | Key, Countershaft | G103905 | |
| 8 | Key, Reverse Idler Shaft | G103905 | |
| 9 | Spacer, Main Shaft | Rear; 2WD | J8128880 |
| 10 | Nut, Main Shaft | Nylon Locknut; 4WD | J8126806 |
| 11 | Washer, Main Shaft | 4WD | JA001410 |
| 12 | Ball, Shift Rail | 2 Required | 453593 |
| 13 | Bearing, Overdrive | Rear; 2WD | J8136622 |
* Not Currently Available
