Model T86

Borg-Warner 3-Speed Transmission

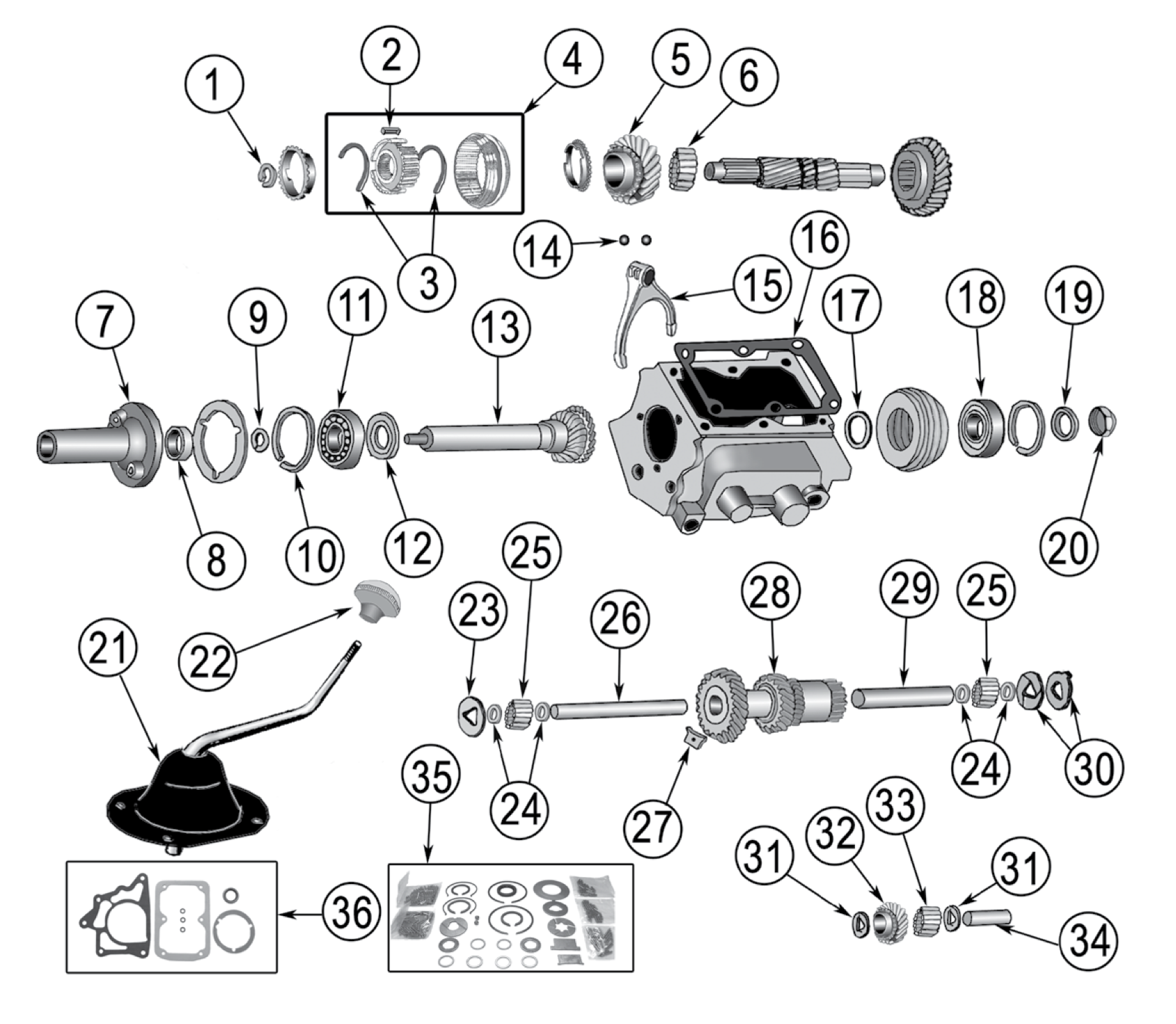

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Model	Comments	Part No.
1	Snap Ring, 2nd and 3rd Gear Synchronizer	All All	.089" Thick .098" Thick	J0932107 932111
2	Plate, Synchronizer	All	2nd and 3rd Gear; 3 Required	J0640395
3	Spring, Synchronizer	All	2nd and 3rd Gear; 2 Required	J0939293
4	Synchronizer Assembly, 2nd and 3rd Gear	All	All except C101 w/ 4-134 F-Head; w/o Blocking Rings	J0941655
5	Gear, 2nd	All	All except C101 w/ 4-134 F-Head	J0941656
6	Roller Bearing, Mainshaft Pilot	All	21 Required	J3208152
7	Retainer, Front Bearing	C101 All	w/ 4-134 F-Head Engine Except C101 w/ 4-134 F-Head Engine	J0640422* J0941665*
8	Seal, Input	All C101	Except C101 w/ 4-134 F-Head Engine w/ 4-134 F-Head Engine (Felt Seal)	83300041 J0645980
9	Snap Ring, Front Bearing Retainer	All All All	.086" Thick .089" Thick .092" Thick	640783 640784 640785
10	Snap Ring, Input Shaft Bearing	All		640782
11	Bearing, Input Shaft	All		J0640781
12	Washer, Front Bearing Retainer	CJ-5, 6, C101		J0640893
13	Gear, Input	CJ-5, 6, C101 SJ, J-Series	w/ V6-225 Engine; 11-3/4" Long; S33-L18 Teeth 10 23/32" Long; S33-L18 Teeth	J0941666* J0941667
14	Ball, Poppet	All All	5/16" Diameter 3/8" Diameter	453593 J0639104
15	Fork, Shift, 1st and Reverse	CJ-5, 6 C101	w/ Tag #s: AS1-T86-CC, AS19-T86-AA	J0642767 J0642767
16	Gasket, Shift Cover	All	w/ Top Shift	J0642770
17	Spacer, Mainshaft Bearing	All		J8128880
18	Bearing, Mainshaft	All All	Rear; w/o Snap Ring Groove Rear; w/ Snap Ring Groove	J8136619 J3184013
19	Washer, Mainshaft Nut	All		JA001410
20	Nut, Mainshaft	All		J8126806
21	Boot, Shift	All		J0907107
22	Knob, Shift	All		J0929393
23	Washer, Countershaft Thrust	All	Front	J0941662
24	Washer, Countershaft Needle Bearing	All	4 Required	J3112993
25	Roller Bearing, Countershaft	All	88 Required	J8132403
26	Countershaft	All		J0640412
27	Plate, Reverse Idler Shaft and Countershaft Lock	All		J0937458
28	Gear, Cluster	All	R33-25-19-L14 Teeth	J0944769
29	Spacer, Countershaft Needle Bearing	SJ, J-Series		J0802414
30	Washer, Countershaft Thrust	All All	Rear; Steel w/ Tab Rear; Bronze Backed w/o Lip	J0640411 J0941061
31	Washer, Reverse Idler Gear Roller Bearing	CJ-5, 6, C101		J0944334
32	Gear, Reverse Idler	CJ-5, 6, C101		944332
33	Roller Bearing, Reverse Idler	CJ-5, 6, C101	22 Required	J0944333
34	Shaft, Reverse Idler Gear	All		J0944335*
35	Small Parts Kit	All	Includes Roller Bearings, Snap Rings, Thrust Washers, and Input Seal	T86AA
36	Gasket and Seal Kit	All	Includes Input Seal, Cover Gasket, Input Bearing Retainer Gasket, Transmission to Transfer Case Gasket, and 3 Screw Seals	J0944817

* Not Currently Available
