Model T98
Borg-Warner 4-Speed Transmission

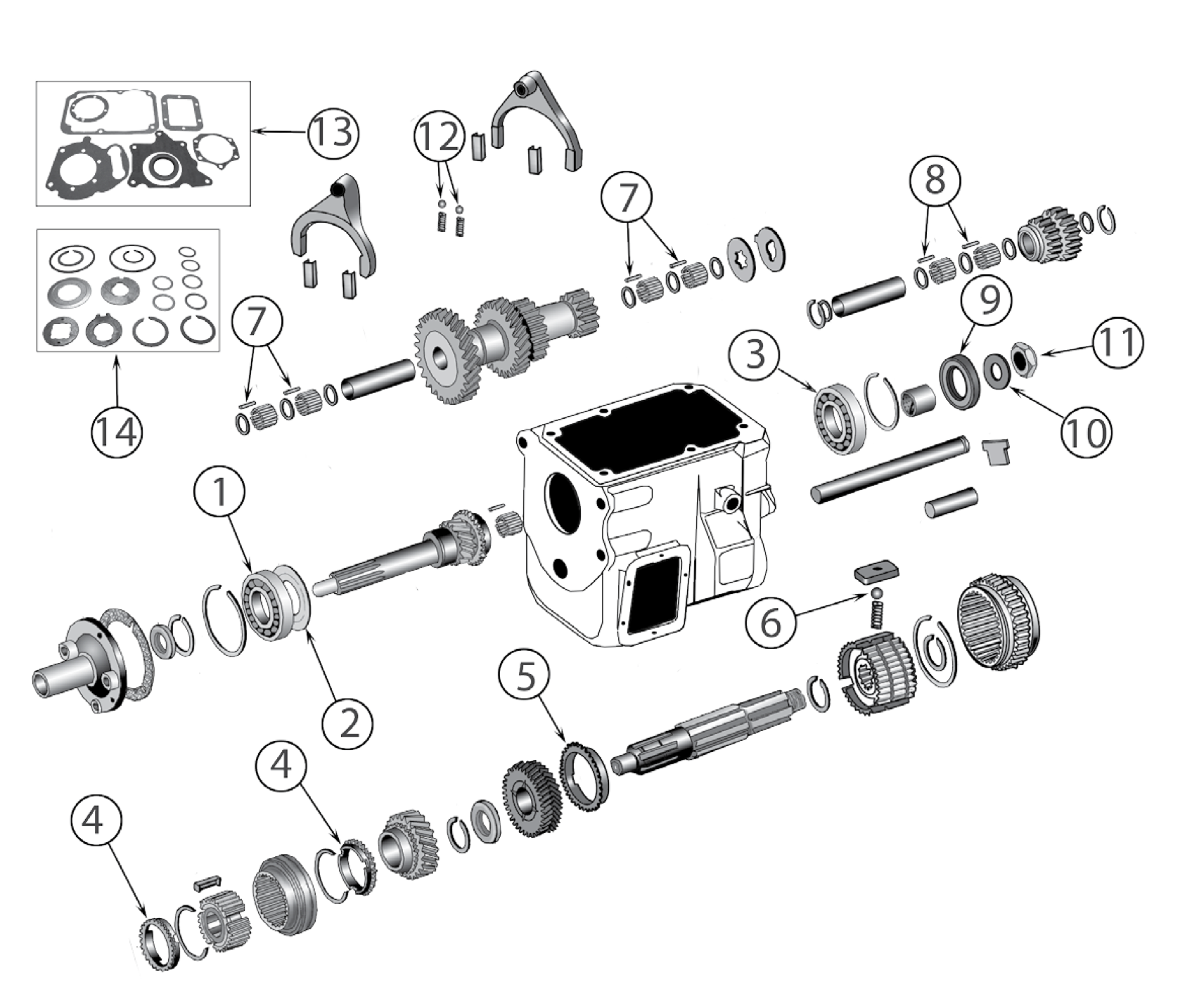

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Comments | Part No. |
|---|---|---|---|
| 1 | Bearing, Input Shaft | J4488141 | |
| 2 | Washer, Front Bearing Retainer | J0640893 | |
| 3 | Bearing, Main Shaft | Rear | J8136623 |
| 4 | Blocking Ring, Synchronizer | 3rd and 4th; 2 Required | J0912324* |
| 5 | Blocking Ring, Synchronizer | 1st and 2nd; 1 Required | J0912340 |
| 6 | Ball, Synchronizer | 1st and 2nd; 3 Required | 453593 |
| 7 | Roller Bearing, Countershaft | 88 Required | J0912345 |
| 8 | Roller Bearing, Reverse Idler Shaft | 77 Required | J0912354 |
| 9 | Output Seal | J0939335 | |
| 10 | Washer, Main Shaft | JA001410 | |
| 11 | Nut, Main Shaft |
Castellated Nylon Locknut |
JA000520* J8126806 |
| 12 | Ball, Shift Rail | 2 Required | 453593 |
| 13 | Gasket Set | J0923302 | |
| 14 | Small Parts Kit | T98 |
* Not Currently Available
