BA10/5

1987-1995 YJ Wrangler

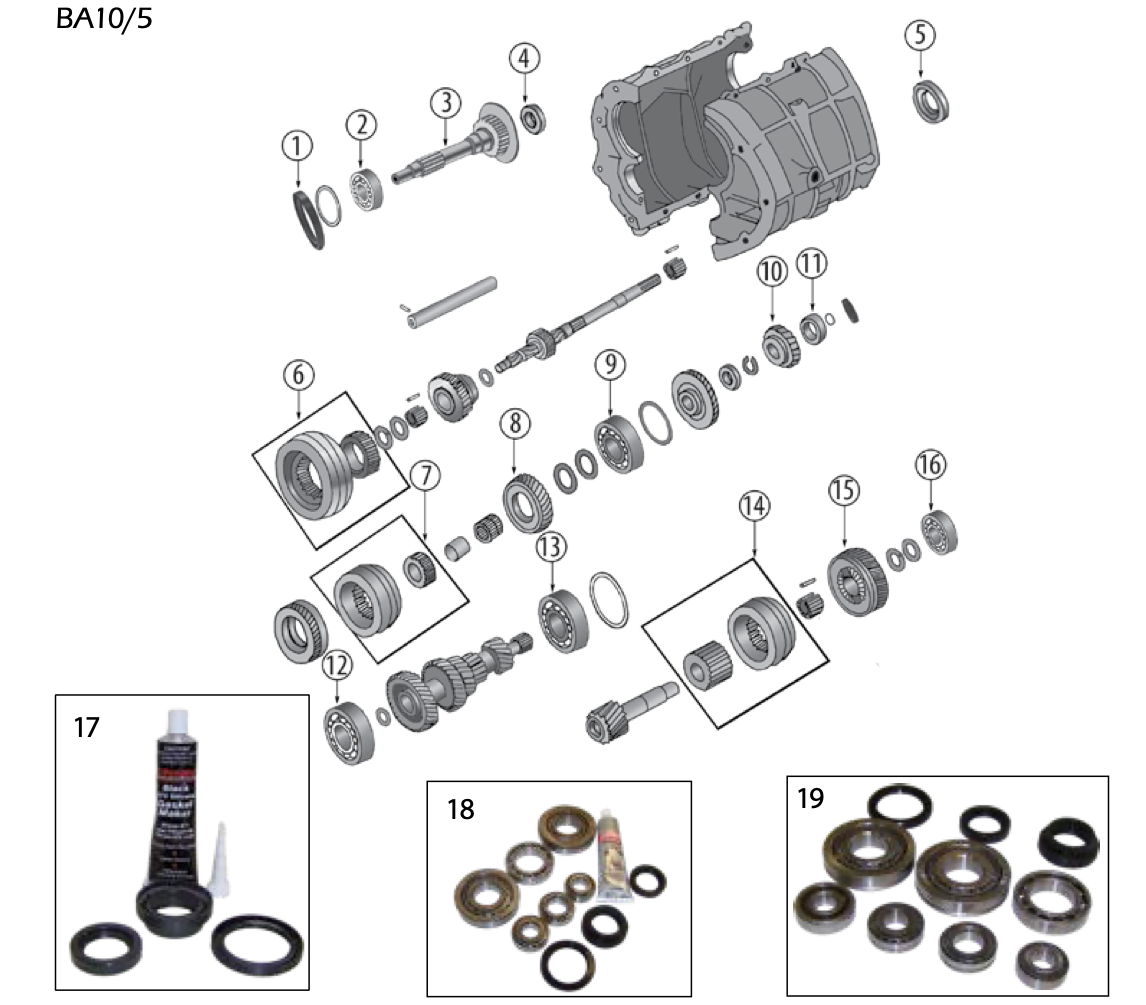

YJ ba10/5 parts. Numbered callouts match the table below.

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #DescriptionYearsCommentsPart No.
1 Seal, Input 87/89   83503234
2 Bearing, Input Shaft 87/89 Front 83505447
3 Shaft, Input 87/89 10 Splines; 26 Teeth 83505205
4 Bearing, Input Shaft 87/89 Rear 83504410
5 Seal, Output 87/89   83503250
6 Synchronizer, 3rd & 4th Gear 87/89   83504103
7 Synchronizer, 1st & 2nd Gear 87/89   83504103
8 Gear, 1st 87/89 32 Teeth 83505444
9 Bearing, Main Shaft 87/89 Between 1st & Reverse 83505447
10 Gear, 5th 87/89 53 X 27 Teeth 83504099
11 Bearing, Main Shaft 87/89   83503249
12 Bearing, Intermediate Shaft 87/89 Front 83503209
13 Bearing, Intermediate Shaft 87/89 Rear 83505448
14 Synchronizer, 5th Gear 87/89   83503246
15 Gear, 5th Intermediate 87/89 51 X 28 Teeth 83505451
16 Bearing, 5th Intermediate Gear 87/89   83503201
17 Gasket & Seal Kit 87/89 Includes Seals & RTV Sealant BA10GS
18 Master Overhaul Kit 87/89 Includes Bearings, Seals, & RTV Sealant BA105MASKIT
19 Bearing & Seal Kit 87/89   BKBA10
