Front Brakes
1987-1995 YJ Wrangler

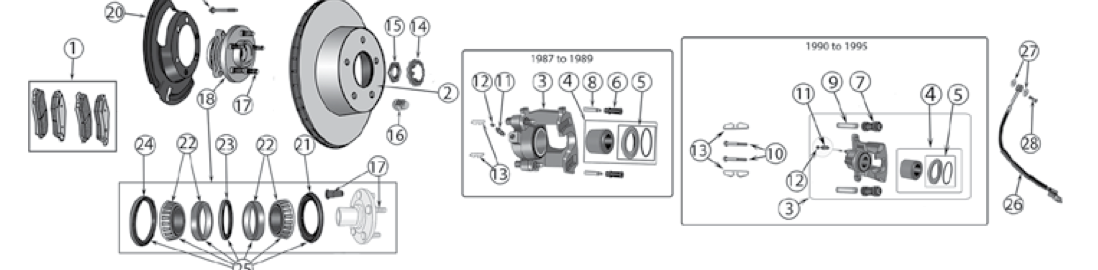

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Location | Notes | Part No. |
|---|---|---|---|---|---|
| Front Brakes | |||||
| 1 | Brake Pad Set |
87/89 87/95 90/95 90/95 |
L & R L & R L & R L & R |
|
83501167 4883344TI 5252531 4778058TI |
| 2 | Brake Rotor |
87/89 90/95 |
L or R L or R |
|
J3251156 52005000 |
| 3 | Brake Caliper |
87/89 90/95 87/89 90/95 |
Left Left Right Right |
w/o Pads w/o Pads w/o Pads w/o Pads |
J8133847 5252985 J8133846 5252984 |
| 4 | Caliper Rebuild Kit |
87/89 90/95 |
L or R L or R |
Includes 1 Piston, 1 Seal, & 1 Boot Includes 1 Piston, 1 Seal, & 1 Boot |
J8133845 5252614 |
| 5 | Caliper Seal Kit | 87/95 | L or R | Includes 1 Seal & 1 Boot | J8133852 |
| 6 | Caliper Bushing | 87/89 | L or R | J3239867 | |
| 7 | Caliper Boot | 90/95 | L or R | 4383471 | |
| 8 | Caliper Pin | 87/89 | L or R | 83504655 | |
| 9 | Caliper Sleeve | 90/95 | L or R | 4423573 | |
| 10 | Caliper Bolt | 90/95 | L or R | M8 X 1.25 X 65mm | 5253000 |
| 11 | Bleeder Screw | 87/95 | L or R | 3/8"-24 X 1.125" Long | J8129722 |
| 12 | Bleeder Screw Cap | 87/95 | L or R | 5093278AB | |
| 13 | Caliper Support Spring | 87/95 | L or R | Upper or Lower Anti-Rattle Clip | J3239865 |
| 14 | Hub Nut Retainer | 87/95 | L or R | J4200097 | |
| 15 | Hub Nut | 87/95 | L or R | J4200095 | |
| 16 | Wheel Nut Wheel Nut Kit |
87/95 87/95 87/95 |
L or R, F or R L or R, F or R L & R, F & R |
Stainless Capped; 1/2"-20 Threads Black; 1/2"-20 Threads Black; 1/2"-20 Threads; Includes 20 Wheel Nuts |
J4006956 J4006956BLK 4006956BLKK |
| 17 | Wheel Stud |
87/89 90/95 |
L or R L or R |
|
J3238138 53007463 |
| 18 | Hub Assembly |
87/89 90/95 90/95 |
L or R L or R L or R |
Roller Bearing Type Ball Bearing Type Roller Bearing Type |
53000228 53007449 5252235 |
| 19 | Knuckle to Hub Bolt | 87/95 | L or R | 34201535 | |
| 20 | Brake Dust Shield |
87/95 87/95 |
Left Right |
|
52005477 52005476 |
| 21 | Hub Seal | 87/89 | L or R | Outer | J3238137 |
| 22 | Wheel Bearing Set | 87/89 | L or R | Inner or Outer; Includes 1 Bearing & 1 Cup | 53000238 |
| 23 | Hub Seal | 87/89 | L or R | Center | 53000237 |
| 24 | Hub Seal | 87/89 | L or R | Inner | 53000239 |
| 25 | Wheel Bearing Kit | 87/89 | L or R | Includes 2 Bearings, 2 Cups, & 3 Seals | 53000238K |
| 26 | Brake Hose |
87/89 90/94 94/95 94/95 87/89 90/95 94/95 |
Left Left Left Left Right Right Right |
Until 2/14/1994; w/o ABS After 2/14/1994; w/o ABS After 2/14/1994; w/ ABS w/o ABS After 2/14/1994; w/ ABS |
52002849 52006473 52008779 52008777* 52002848 52006472 52008776* |
| 27 | Brake Hose Washer | 87/95 | L or R | Sold Individually | J3236434 |
| 28 | Brake Hose Bolt | 87/95 | L or R | 3/8"-24 Threads | 6035911AA |
* This part is not currently carried by Crown Automotive
