Rear Brakes
1987-1995 YJ Wrangler

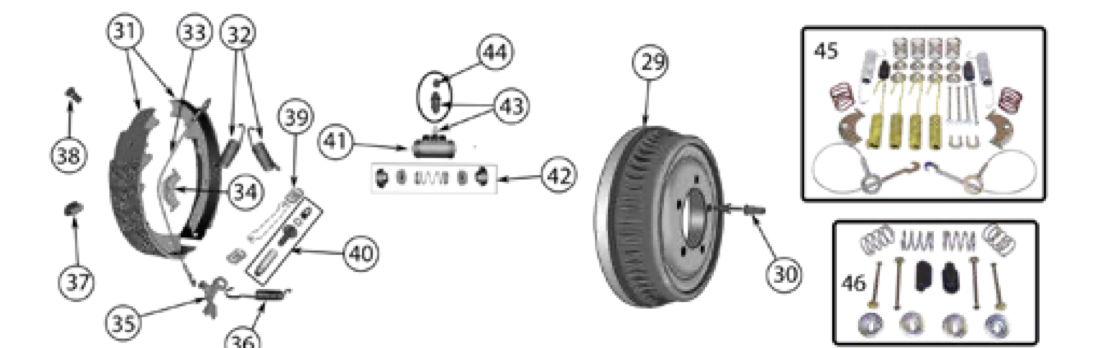

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Location | Notes | Part No. |
|---|---|---|---|---|---|
| Rear Brakes | |||||
| 29 | Brake Drum |
87/89 87/95 90/95 |
L or R L or R L or R |
10" X 1-3/4" 10" X 2-1/2" 9" X 2-1/2" |
52001151 52001915 52005350 |
| 30 | Wheel Stud | 87/95 | L or R | 83503053 | |
| 31 | Brake Shoe Set |
87/89 87/95 90/95 |
L or R L or R L or R |
w/ 10" X 1-3/4" Drums w/ 10" X 2-1/2" Drums w/ 9" X 2-1/2" Drums |
J8133818 83502385 4423606 |
| 32 | Brake Shoe Return Spring |
87/89 90/95 |
L or R L or R |
w/ 10" Drums w/ 9" Drums |
J3112780 J3201928 |
| 33 | Automatic Adjuster Cable |
87/89 90/95 |
L or R L or R |
w/ 10" Drums w/ 9" Drums |
J3201027 3461662 |
| 34 | Automatic Adjuster Cable Guide | 87/89 | L or R | J3201947 | |
| 35 | Adjuster Lever | 87/95 | L or R | w/ 9" Drums | 3461665 |
| 36 | Adjuster Spring |
87/89 90/95 |
L or R L or R |
w/ 9" Drums |
J3201937 4423085 |
| 37 | Drum Brake Adjuster Cover | 87/95 | L or R | Sold Individually | J3201957 |
| 38 | Brake Backing Plate Bolt | 87/95 | L or R | (KDX) w/ Dana 44 Rear Axle | J0994313 |
| 39 | Brake Strut Spring |
87/90 90/95 |
L or R L or R |
(KDX) w/ Dana 44 Rear Axle w/ 9" Drums |
83504310 4313079 |
| 40 | Drum Brake Adjuster |
87/95 87/95 90/95 90/95 |
Left Right Left Right |
w/ 10" Drums w/ 10" Drums w/ 9" Drums; Left Hand Threads w/ 9" Drums; Right Hand Threads |
52001215 52001216 4713357 4713356 |
| 41 | Wheel Cylinder |
87/95 87/95 90/95 |
Left Right L or R |
w/ 10" Drums w/ 10" Drums w/ 9" Drums |
52000849 52000848 4423601 |
| 42 | Wheel Cylinder Repair Kit | 87/95 | L or R | w/ 10" Drums | 83500987 |
| 43 | Bleeder Screw | 87/95 | L or R | 5/16"-24 X 1" Long | 3766674 |
| 44 | Bleeder Screw Cap | 87/95 | L or R | 5093278AB | |
| 45 | Drum Brake Hardware Kit |
87/89 87/89 87/95 90/95 90/95 |
L & R L & R L & R L & R L & R |
w/ 10" X 1-3/4" Drums; Includes Springs, Pins & Plugs w/ 10" X 1-3/4" Drums; Includes Springs, Pins, Cables, & Guides w/ 10" X 2-1/2" Drums; Includes Springs, Pins, Cables, & Guides w/ 9" Drums; Includes Springs, Pins, Cables, & Guides w/ 9" Drums; Includes Springs & Pins |
H7064 4636777 4636778 4636779 H7170 |
| 46 | Brake Shoe Hold Down Kit | 90/95 | L & R | w/ 9" Drums; Includes Springs, Pins, Locks, & Adjusting Hole Plugs | 4049681 |
