Clutch
1987-1995 YJ Wrangler

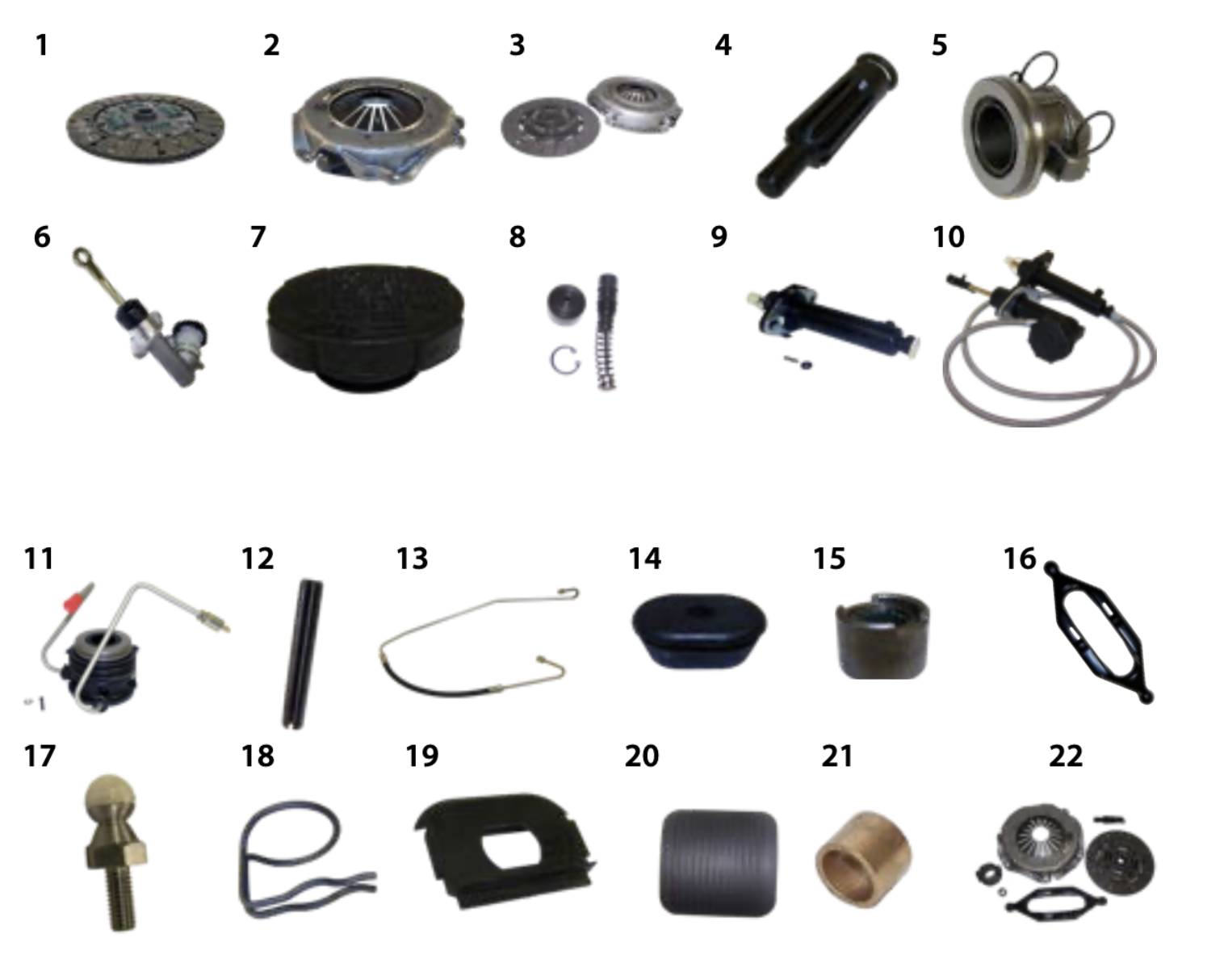

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
Clutch Components
| Item # | Description | Years | Engine | Spline Count | Disc Diameter | Spline Diameter | Part No. |
|---|---|---|---|---|---|---|---|
| 1 | Clutch Disc |
87/90 91/95 87/95 |
2.5L 2.5L 4.2L, 4.0L |
14 14 10 |
9.125" 9.125" 10.5" |
1" .968" 1.125" |
53004538 53007584 53008259 |
| 2 | Pressure Plate |
87/95 87/91 92/95 |
2.5L 4.2L, 4.0L 4.0L |
|
|
|
53003006 53004678 4638411C |
| 3 | Clutch Kit |
91/95 87/90 1991 92/95 |
2.5L 4.2L 4.0L 4.0L |
14 10 10 10 |
9.125" 10.5" 10.5" 10.5" |
.968" 1.125" 1.125" 1.125" |
4626213 4626211 4626211 68044869AA |
| 4 | Clutch Alignment Tool |
87/95 87/90 91/95 92/95 |
2.5L 4.2L 4.0L 4.0L |
14 10 10 10 |
9/16" Pilot Diameter 3/4" Pilot Diameter |
1" 1.125" 1.125" 1.125" |
53006 53010 53010 53011 |
| Item # | Description | Years | Engine | Notes | Part No. |
|---|---|---|---|---|---|
| 5 | Clutch Release Bearing | 94/95 | All | 53008342 | |
| 6 | Clutch Master Cylinder |
91/95 87/90 |
2.5L, 4.0L 2.5L, 4.2L |
|
4636865 53004466 |
| 7 | Clutch Master Cylinder Cap |
87/90 91/95 |
All All |
|
83504098 4636856 |
| 8 | Clutch Master Cylinder Repair Kit | 87/90 | 2.5L, 4.2L | 83504097 | |
| 9 | Clutch Slave Cylinder | 94/95 | All | 52107640S | |
| 10 | Clutch Hydraulic Assembly | 94/95 | 2.5L, 4.0L | LHD | 52104113 |
| 11 | Clutch Control Unit |
87/92 1993 87/89 89/90 91/92 |
2.5L 2.5L, 4.0L 4.2L 4.2L 4.0L |
Male Fitting w/ BA10/5 Transmission w/ AX15 Transmission; Female Fitting |
83503384 4728735 83503383 5252137 83503383 |
| 12 | Clutch Control Unit Line Retaining Pin | 91/93 | All | 83503385 | |
| 13 | Clutch Hose | 87/90 | 2.5L | 53004241 | |
| 14 | Clutch Hose Grommet | 87/92 | 2.5L | At Bellhousing | 53004051 |
| 15 | Pilot Bearing |
87/95 87/91 92/95 |
2.5L 4.0L, 4.2L 4.0L |
|
J3250005 33004041 53009181 |
| 16 | Clutch Fork | 94/95 | All | 53006388 | |
| 17 | Clutch Fork Pivot | 94/95 | All | 52087542 | |
| 18 | Clutch Fork Spring | 94/95 | All | 4338855 | |
| 19 | Crankshaft Position Sensor Grommet | 91/95 | All | 53006010 | |
| 20 | Clutch Pedal Pad | 87/95 | All | 52002750 | |
| 21 | Clutch Pedal Bushing | 87/95 | All | Bronze | J0946177 |
Clutch Master Kits
COMPONENTS: A. Clutch Disc. B. Pressure Plate. C. Control Unit. D. Pilot Bearing. E. Alignment Tool. F. Clutch Bearing. G. Clutch Fork.
| Item # | Description | Years | Engine | Spline Count | Disc Diameter | Spline Diameter | Includes | Part No. |
|---|---|---|---|---|---|---|---|---|
| 22 | Clutch Kit |
87/90 87/90 1991 91/95 1992 1993 94/95 87/89 87/89 89/90 91/92 1991 1992 1993 94/95 94/95 |
2.5L 2.5L 2.5L 2.5L 2.5L 2.5L 2.5L 4.2L 4.2L 4.2L 4.0L 4.0L 4.0L 4.0L 4.0L 4.0L |
14 14 14 14 14 14 14 10 10 10 10 10 10 10 10 10 |
9.125" 9.125" 9.125" 9.125" 9.125" 9.125" 9.125" 10.5" 10.5" 10.5" 10.5" 10.5" 10.5" 10.5" 10.5" 10.5" |
1" 1" .968" .968" .968" .968" .968" 1.125" 1.125" 1.125" 1.125" 1.125" 1.125" 1.125" 1.125" 1.125" |
A, B, C, D, E A, B, C A, B, C, D, E A, B, F A, B, C, D, E, G A, B, C, D, E, G A, B, D, E, F, G A, B, C; BA10/5 A, B, C, D, E, G; BA10/5 A, B, C, D, E; AX15 A, B, C A, B, C, D, E, G A, B, C, D, E, G A, B, C, D, E, G A, B, F A, B, D, E, F, G |
XY8790F 53004538K XY1991F 4626213K XY1992F XYZ1993F TXYZ9499F 53004116K XY8789SP XY8990SA 53004116K XY1991S XY1992S XYZ1993S 4874175K TXYZ9499S |
