Cooling
1987-1995 YJ Wrangler

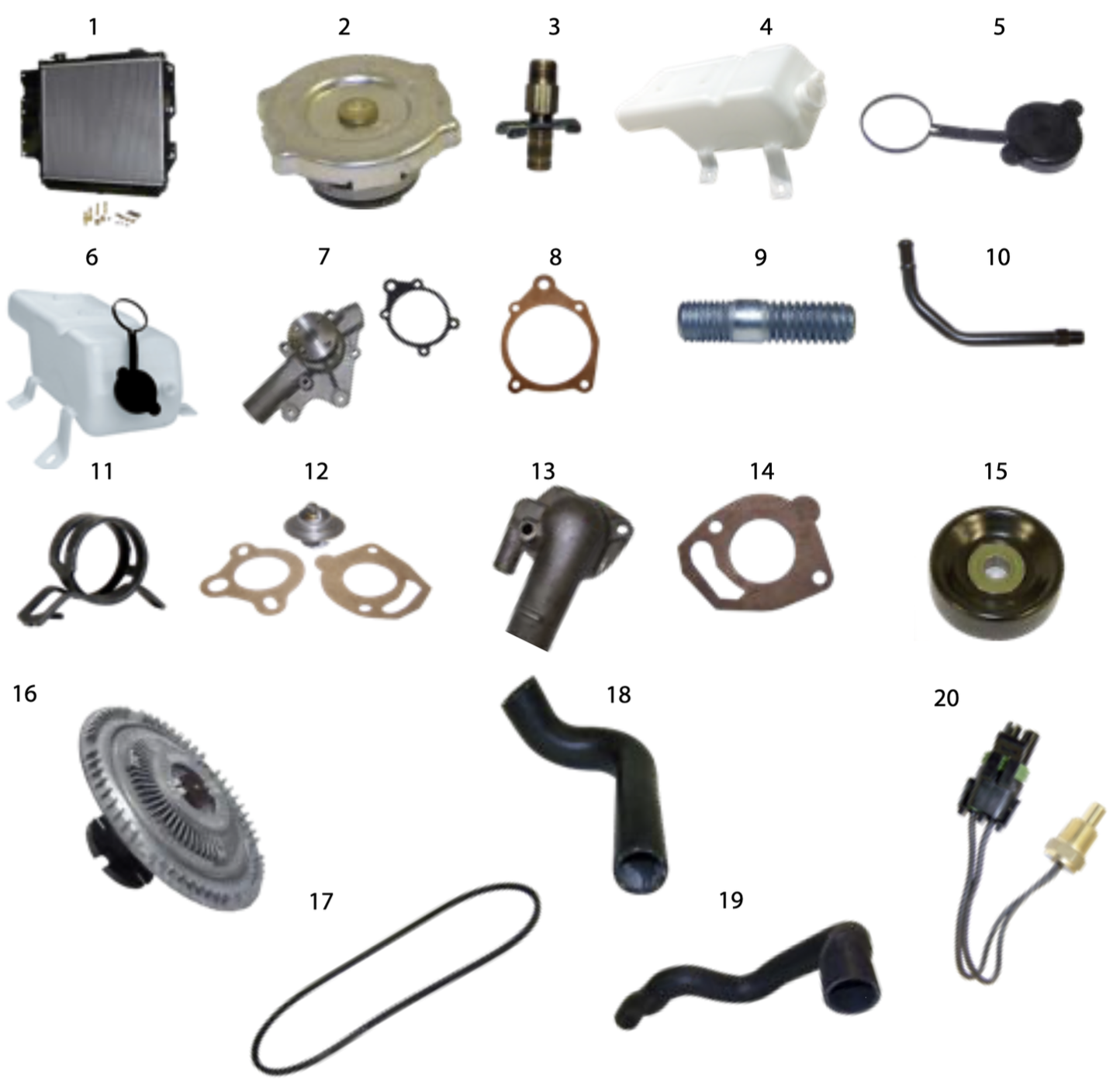

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Year | Engine | Comment | Dimensions | Type | Part No. |
|---|---|---|---|---|---|---|---|
| Radiators, Coolant Bottles & Related | |||||||
| 1 | Radiator | 87/95 | All | LHD | 18-1/2" x 22" | 2 Rows | 52080183 |
| 2 | Radiator Cap |
87/93 94/95 |
All 2.5L, 4.0L |
13 psi 16 psi |
|
|
J3239375 52079880AA |
| 3 | Radiator Draincock | 87/95 | All | Brass | J3166547 | ||
| 4 | Coolant Bottle | 87/95 | All | J5362920 | |||
| 5 | Coolant Bottle Cap | 87/95 | All | J3223202 | |||
| 6 | Coolant Bottle Kit | 87/95 | All | Includes Bottle & Cap | 5362920K | ||
| Water Pumps & Related | |||||||
| 7 | Water Pump |
87/90 87/90 91/95 |
2.5L, 4.2L 2.5L, 4.2L 2.5L, 4.0L |
w/o Serpentine Belt; Incl. Gasket w/ Serp. Belt; Incl. Gasket; Reverse Rotation Includes Gasket |
|
|
83502957 4637500AB 4626054 |
| 8 | Water Pump Gasket | 87/95 | All | J3173204 | |||
| 9 | Water Pump Stud | 87/95 | All | J4006714 | |||
| 10 | Water Pump Tube | 91/95 | 2.5L, 4.0L | 53007978 | |||
| 11 | Hose Clamp | 87/95 | All | Coolant Hose to Filler Tube | 32003300AB | ||
| Thermostats & Related | |||||||
| 12 | Thermostat | 87/95 | All | 195°; Includes Gaskets | 83501426 | ||
| 13 | Thermostat Housing |
1987 87/90 91/95 |
2.5L 4.2L 2.5L, 4.0L |
|
|
|
33004856 33004856 53006192 |
| 14 | Thermostat Housing Gasket | 87/95 | All | J3189874 | |||
| Pulleys | |||||||
| 15 | Drive Belt Idler Pulley |
87/89 87/90 87/95 91/95 94/95 |
4.2L All 2.5L 4.0L 2.5L, 4.0L |
(KDX) w/o Factory A/C RHD |
3.95" Diameter 3.55" Diameter 3.55" Diameter 3.55" Diameter 3" Diameter |
6 Grooves Smooth Smooth Smooth Smooth |
J3239821 53002905 53002905 53002905 53010230 |
| Fan Clutches | |||||||
| 16 | Fan Clutch |
87/90 87/90 91/95 |
2.5L, 4.2L 4.2L 2.5L, 4.0L |
w/o Serpentine Drive w/ Serpentine Belt |
|
|
J5362722 J3241858 J3241858 |
| Accessory Drive Belts | |||||||
| 17 | Accessory Drive Belt |
87/89 87/90 87/90 87/90 87/90 91/93 91/93 91/93 91/94 91/95 94/95 1995 1995 |
2.5L, 4.2L 2.5L, 4.2L 2.5L, 4.2L 2.5L, 4.2L 2.5L, 4.2L 2.5L, 4.0L 2.5L, 4.0L 2.5L, 4.0L 2.5L, 4.0L 2.5L, 4.0L 2.5L, 4.0L 2.5L, 4.0L 2.5L, 4.0L |
w/ American A/C; A/C Compressor Belt w/ PS; Power Steering Belt w/ PS w/ PS w/o PS w/ A/C; w/ PS w/ A/C; w/ PS; Continental Elite w/ A/C; w/o PS w/o A/C; w/ PS w/o A/C; w/o PS LHD; w/o A/C; w/ PS w/ A/C; w/ PS w/ A/C; w/ PS; Continental Elite |
47.5" Long 46.5" Long 43" Long 81.7" Long 78.5" Long 96.7" Long 96.7" Long 89.4" Long 71" Long 69.0" Long 79.0" Long 91.0" Long 91.0" Long |
V-Belt V-Belt V-Belt 6 Ribs 6 Ribs 6 Ribs 6 Ribs 6 Ribs 6 Ribs 6 Ribs 6 Ribs 6 Ribs 6 Ribs |
83503350 JY017465 JY013411 JK060817 Q4060785 53007539 4060967 53010234 53010284 53010283 53010257 53011035 4060910 |
| Radiator Hoses | |||||||
| 18 | Upper Radiator Hose |
87/95 87/90 91/95 |
2.5L 4.2L 4.0L |
LHD LHD |
|
|
52040235 52040290 52005794 |
| 19 | Lower Radiator Hose |
87/95 87/90 91/95 |
2.5L 4.2L 4.0L |
LHD LHD |
|
|
52040236 52040289 52003790 |
| Miscellaneous | |||||||
| 20 | Coolant Temperature Sensor |
87/90 91/95 87/91 92/95 |
2.5L, 4.0L 2.5L, 4.0L All 2.5L, 4.0L |
For PCM For PCM; In Thermostat Housing For Gauges; In Cylinder Head For Gauges; In Cylinder Head |
|
|
33002383 33004281 53005056 56027012 |
