Dana 30 Front Axle
1987-1995 YJ Wrangler

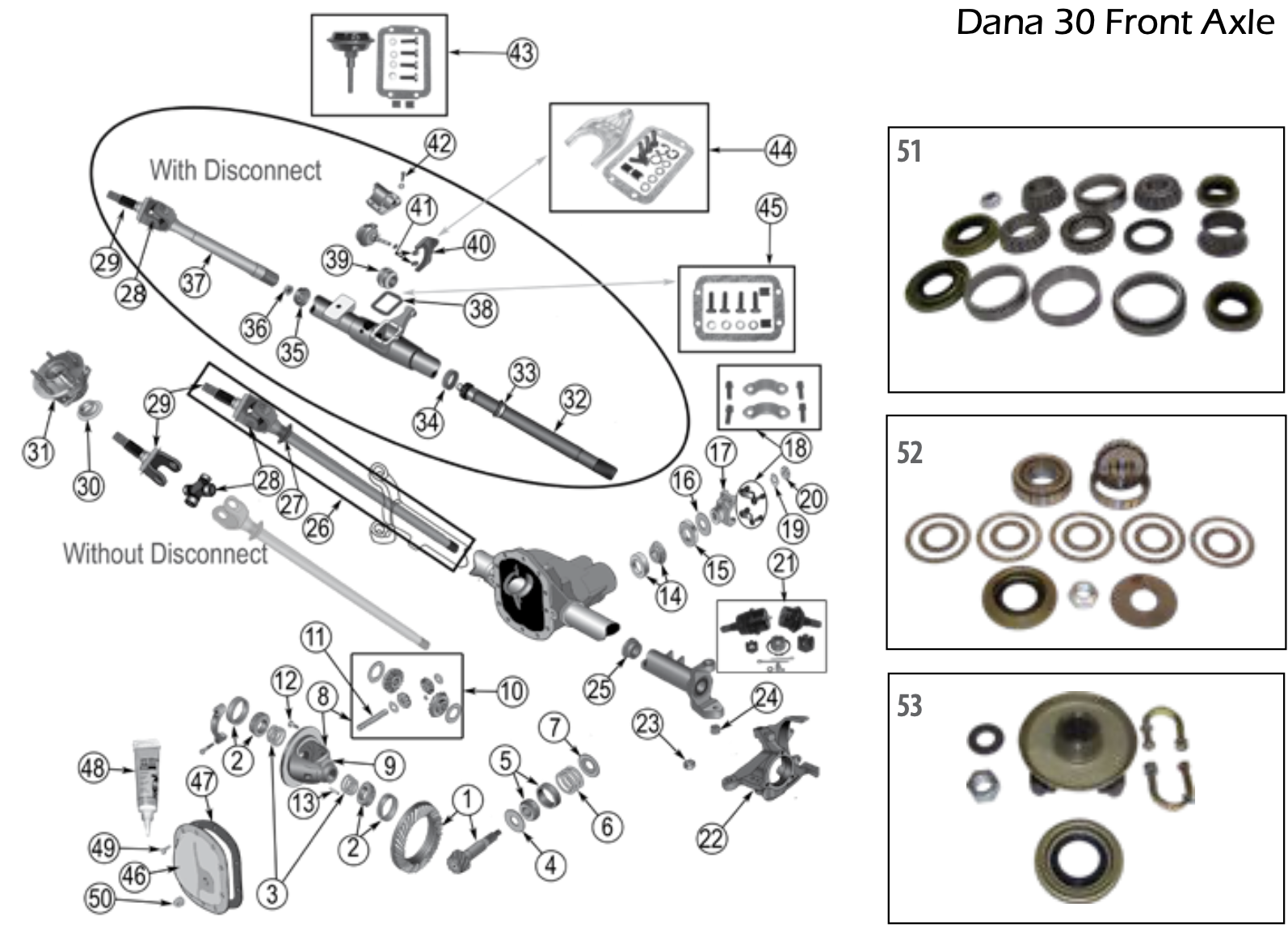

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Comments | Ratio | Part No. |
|---|---|---|---|---|---|
| 1 | Ring & Pinion Set |
87/95 87/95 87/95 87/95 87/95 |
|
3.07 3.55 3.73 4.10 4.56 |
83500187 83505480 4746074 83502353 83503424 |
| 2 | Bearing Set, Carrier | 87/95 | Includes 2 Bearings & 2 Cups | All | J8126500 |
| 3 | Shim Set, Carrier | 87/95 | All | 83500191 | |
| 4 | Slinger, Oil | 87/95 | Inner | All | 3893982 |
| 5 | Bearing Set, Pinion | 87/95 | Inner | All | J8126499 |
| 6 | Shim Set, Pinion | 87/95 | All | 83500192 | |
| 7 | Baffle, Pinion | 87/95 | All | J0934937 | |
| 8 | Case Assembly, Differential |
87/89 87/89 90/95 90/95 |
Includes Gear Set Includes Gear Set Includes Gear Set Includes Gear Set |
3.55 & Lower 3.73 & Higher 3.55 & Lower 3.73 & Higher |
J8130755* 83500169* 5252582 5252590 |
| 9 | Case, Differential |
90/95 87/95 |
Less Gear Set; Includes 3, 12, 13, 47 Less Gear Set; Includes 3, 12, 13, 47 |
3.55 & Lower 3.73 & Higher |
J8126515 J8126496 |
| 10 | Gear Set, Differential |
87/89 90/95 |
|
All All |
83500190* 5252591 |
| 11 | Shaft, Differential | 87/95 | All | 5003840AA | |
| 12 | Bolt, Ring Gear Bolt Kit, Ring Gear |
87/95 87/95 |
Each Includes 10 Bolts |
All All |
J0649454 4720891 |
| 13 | Pin, Differential Shaft | 87/95 | Roll Type | All | J0636360 |
| 14 | Bearing Set, Pinion | 87/95 | Outer | All | J8124052 |
| 15 | Seal, Pinion Seal, Pinion |
87/93 87/95 |
w/o Yoke Slinger (See #17) w/ Yoke Slinger (See #17) |
All All |
J0998092 83503390 |
| 16 | Slinger, Oil | 87/95 | Outer | All | J0636566 |
| 17 | Yoke, Pinion |
87/93 87/95 |
(OEM Had Slinger) (OEM Had No Slinger) |
All All |
J8131656 83503388 |
| 18 | Strap & Bolt Kit |
87/95 87/95 |
Hex Head Bolts 12-Point Head Bolts |
All All |
4006698K 4006928K |
| 19 | Washer, Pinion | 87/95 | All | J4004913 | |
| 20 | Nut, Pinion | 87/95 | All | J0801367 | |
| 21 | Ball Joint Kit | 87/95 | Includes 1 Upper & 1 Lower w/ Hardware | All | 83500202 |
| 22 | Knuckle, Steering |
87/89 87/89 90/95 90/95 |
Right Left Right Left |
All All All All |
53000626* 53000625* 52067576 52067577 |
| 23 | Nut, Lower Ball Joint | 87/95 | Left or Right | All | J8123318 |
| 24 | Split Ring, Ball Joint | 87/89 | Left or Right | All | 83500203 |
| 25 | Seal, Axle Shaft |
87/95 87/95 87/95 |
Left Right (O.D. 2.29") Right (O.D. 2.125") |
All All All |
J8121781 83500199 83503504 |
| 26 | Axle Shaft Assembly |
87/95 87/95 |
Left, w/o ABS, w/ or w/o Disconnect Right, w/o ABS, w/o Disconnect |
All All |
4874303 4874302 |
| 27 | Slinger, Inner Axle Shaft |
87/89 90/95 |
Steel Plastic |
All All |
J8126232 4797769 |
| 28 | U-Joint, Axle Shaft |
87/95 87/95 91/95 91/95 |
(1.06" Cap) (w/o ABS) (1.06" Cap) (w/o ABS) Heavy Duty (1.187" Cap) (w/ ABS) (1.187" Cap) (w/ ABS) Heavy Duty |
All All All All |
J8136616 8126637SP J8126638 8126638SP |
| 29 | Shaft, Axle Outer |
87/95 91/95 |
w/o ABS w/ ABS |
All All |
83500184 4713190 |
| 30 | Slinger, Outer Axle Shaft | 87/95 | w/o ABS | All | 83500201 |
| 31 | Hub Assembly |
87/89 90/95 |
|
All All |
53000228 53007449 |
| 32 | Shaft, Intermediate Axle | 87/95 | w/ Disconnect | All | 5252594 |
| 33 | Collar, Intermediate Axle | 90/95 | w/ Disconnect | All | 5252687 |
| 34 | Bearing, Intermediate Axle | 87/89 | w/ Disconnect | All | J8133622 |
| 35 | Seal, Intermediate Axle |
87/95 87/95 |
2.29" O.D. 2.12" O.D. |
All All |
83500199 83503504 |
| 36 | Bearing, Outer Shaft |
87/89 90/95 |
w/ Disconnect w/ Disconnect |
All All |
J8134213 5252686 |
| 37 | Axle Shaft Assembly |
87/95 87/95 91/95 91/95 |
Left, w/o ABS, w/ or w/o Disconnect Right, w/o ABS, w/ Disconnect Left, w/ ABS, w/ or w/o Disconnect Right, w/ ABS, w/ Disconnect |
All All All All |
4874303 5252145 4874307 4741033 |
| 38 | Cover Gasket, Disconnect Housing | 87/95 | w/ Disconnect | All | 4137732 |
| 39 | Shift Collar | 87/95 | w/ Disconnect | All | 83504813 |
| 40 | Shift Fork |
87/95 87/95 |
w/ Disconnect; OE Style Aluminum w/ Disconnect; HD Upgrade, Cast Iron |
All All |
83503695 4137727 |
| 41 | Insert, Shift Fork | 87/95 | w/ Disconnect | All | 4137731 |
| 42 | Bolt, Disconnect Housing | 87/95 | w/ Disconnect | All | 4137734 |
| 43 | Vacuum Motor Kit, Disconnect |
87/90 91/95 |
w/ Disconnect; 3 Ports w/ Disconnect; 2 Ports |
All All |
83503113 4506116 |
| 44 | Fork Kit, Disconnect | 87/95 | w/ Disconnect | All | 5252599 |
| 45 | Clip Kit, Shift Fork | 87/95 | w/ Disconnect | All | J8133708 |
| 46 | Differential Cover | 87/95 | Includes Bolts & Fill Plug | All | 4713451 |
| 47 | Gasket, Differential Cover | 87/95 | Paper | All | J8120360 |
| 48 | Sealant, RTV | 87/95 | All | J8993317 | |
| 49 | Bolt, Differential Cover | 87/95 | 10 Required | All | J0273573 |
| 50 | Plug, Differential Cover | 87/95 | 1/2"-14 | All | J4004751 |
| 51 | Bearing & Seal Kit | 87/95 | Includes 2, 5, 14, 15, 25, 20, 35 | All | D30EMASKIT |
| 52 | Pinion Bearing Kit | 87/95 | Includes 5, 6, 14, 15, 16, 20 | All | D30EPBK |
| 53 | U-Bolt Yoke Kit | 87/95 | Includes Yoke, Seal, Nut, & U-Bolts | All | D3044YOKEUBK |
* This part is not currently carried by Crown Automotive
