Dana 35 Rear Axle
1987-1995 YJ Wrangler

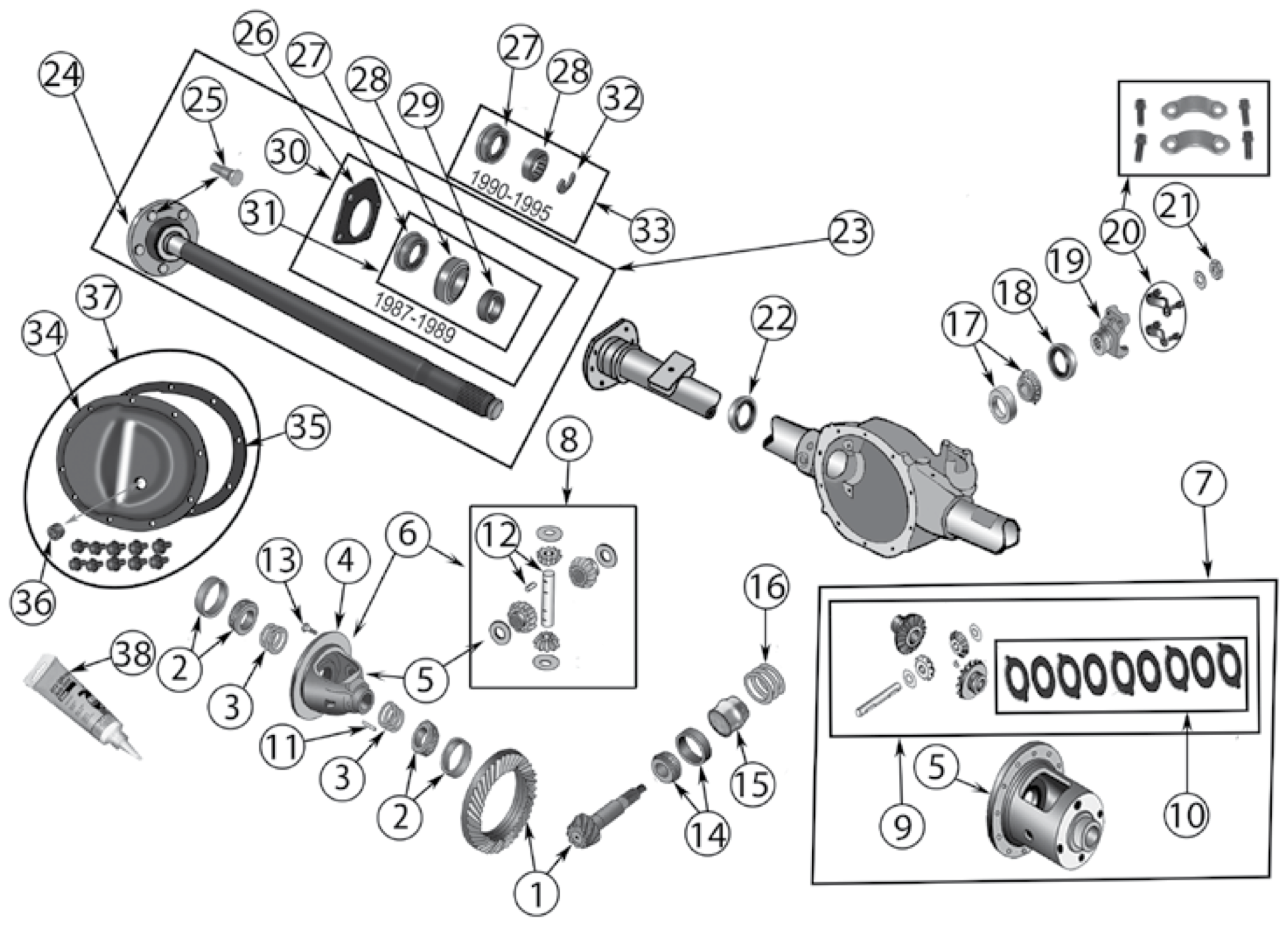

Item numbers match the diagrams. Each part number searches Amazon for that Crown part.
| Item # | Description | Year | Comments | Ratio | Part No. |
|---|---|---|---|---|---|
| 1 | Ring & Pinion |
87/95 87/90 87/95 87/95 87/95 87/93 94/95 94/95 94/95 |
w/ .81" Long Ring Gear Bolts w/ .66" Long Ring Gear Bolts; Includes 4, 13 w/ Std. Differential; Includes 13, 15, 21 w/ Trac-Lok Differential; Includes 13, 15, 21 Includes 13, 15, 21 w/o Locking Differential; Includes 13, 15, 21 |
3.07 (43-14) 3.07 (40-13) 4.11 (37-9) 4.56 (41-9) 4.88 (39-8) 3.55 (39-11) 3.55 (39-11) 3.55 (39-11) 3.73 (41-11) |
83505472 83504934K 83504938 83504377 D35488 83504376 4761676 83504376 4761678 |
| 2 | Bearing Set, Differential | 87/95 | Includes 2 Bearings & 2 Cups | All | J8126500 |
| 3 | Shim Set, Carrier | 87/95 | All | 83503004 | |
| 4 | Case, Differential, Standard |
87/89 1990 91/95 91/95 87/90 91/93 91/93 94/95 |
w/ .81" Long Ring Gear Bolts; Includes 4 Includes 4 w/o ABS; Includes 4 w/ ABS; Includes 4 Includes 4 w/ 2.5L Engine; Includes 4 w/ 4.0L Engine w/o ABS; Includes 4 w/ Casting #: 41994, 43225, 4013; Includes 4 |
3.07 3.07 3.07 3.07 3.55 & Higher 3.55 & Higher 3.55 & Higher 3.55 & Higher |
43219 43219 43219 44649 44590 44590 44590 44590 |
| 5 | Case, Differential, Trac-Lok | 87/95 | Includes 4, 13 | 3.55 & Higher | 43233 |
| 6 | Case Assembly, Standard |
87/89 1990 91/95 91/95 1990 91/93 91/93 91/93 94/95 |
w/ .81" Bolt Length; Includes 2, 3, 4, 8, 13 Includes 2, 3, 4, 8, 13 w/o ABS; Includes 2, 3, 4, 8, 13 w/ ABS; Includes 2, 3, 4, 8, 13 Includes 2, 4, 8, 13 w/ 2.5L Engine; Includes 2, 4, 8, 13 w/ 4.0L Engine w/ ABS; Includes 2, 4, 8, 13 w/ 4.0L Engine w/o ABS; Includes 2, 4, 8, 13 w/ Casting #: 44591, 44548, 4292; Includes 2, 3, 8, 13 |
3.07 3.07 3.07 3.07 3.55 & Higher 3.55 & Higher 3.55 & Higher 3.55 & Higher 3.55 & Higher |
83502880 83502880 83502880 4740833 4740834 4740834 4740834 4740834 4740834 |
| 7 | Case Assembly, Trac-Lok |
87/95 87/95 |
Includes 2, 3, 7, 13 Includes 2, 7, 13 |
3.07 3.55 & Higher |
83505020 83505021 |
| 8 | Gear Set, Differential, Standard |
87/90 91/93 91/93 1994 1994 1995 94/95 |
w/ ABS w/o ABS w/ ABS w/o ABS All |
All All All 3.07 3.07 3.07 3.55 & Higher |
83503002 4740670 83503002 4740670 83503002 4740670 4740670 |
| 9 | Gear Set, Differential, Trac-Lok | 87/95 | All | 5252497 | |
| 10 | Disc Kit, Differential | 87/95 | Trac-lok | All | 83500263 |
| 11 | Pin, Differential Shaft | 90/95 | Threaded Pin Type | All | 5252502 |
| 12 | Shaft & Pin Kit, Differential |
87/89 90/95 |
Standard Differential; Roll Pin Style Threaded Pin Style |
All All |
3224231K 5252502K |
| 13 | Bolt, Ring Gear Bolt Kit, Ring Gear |
87/90 91/95 87/90 91/95 |
w/ .81" Long Ring Gear Bolts w/ .81" Long Ring Gear Bolts; Includes 10 Bolts Includes 10 Bolts |
All All All All |
J0649454 J0649454 4720891 4720891 |
| 14 | Bearing Set, Pinion | 87/95 | Inner | All | 5252507 |
| 15 | Spacer, Pinion Crush | 87/95 | All | 3175779 | |
| 16 | Shim Set, Pinion | 87/95 | All | 83503003 | |
| 17 | Bearing Set, Pinion | 87/95 | Outer | All | 5252508 |
| 18 | Seal, Pinion | 87/95 | All | 83504946 | |
| 19 | Yoke, Pinion |
87/95 94/95 |
w/ 3.219" U-Joint Length w/ 3.625" U-Joint Length |
All All |
83503318 4746835 |
| 20 | Strap & Bolt Kit, U-Joint |
87/95 87/95 |
Hex Head Bolts 12-Point Head Bolts |
All All |
4006698K 4006928K |
| 21 | Nut, Pinion | 87/95 | All | J3182601 | |
| 22 | Seal, Axle | 87/89 | Inner | All | 83503010 |
| 23 | Axle Shaft Assembly |
87/89 87/89 |
Right (28.85" Long); Includes 24, 25, 30 Left (30.35" Long); Includes 24, 25, 30 |
All All |
83502882 83502883 |
| 24 | Axle Shaft |
87/89 87/89 1990 1990 91/92 91/92 93/95 93/95 |
Right (28.85" Long) Left (30.35" Long) Right w/o ABS (29.04" Long) Left w/o ABS (30.54" Long) Right (29.04" Long) Left (30.54" Long) Right (29.00" Long) Left (30.62" Long) |
All All All All All All All All |
53000404 53000403 5252956 5252957 5252948 5252949 4713192 4713193 |
| 25 | Stud, Wheel | 87/95 | All | 83503053 | |
| 26 | Retainer, Axle Shaft | 87/89 | All | 83503022 | |
| 27 | Seal, Axle Shaft |
87/89 90/95 |
Outer |
All All |
53000477 4856336 |
| 28 | Bearing, Axle Shaft |
87/89 90/95 |
|
All All |
53000475 J8134036 |
| 29 | Retaining Ring, Axle Shaft | 87/89 | All | 83503054 | |
| 30 | Bearing & Retainer Kit, Axle Shaft | 87/89 | Includes 26, 27, 28, 29 | All | 83501451 |
| 31 | Bearing Kit, Axle Shaft | 87/89 | Includes 27, 28, 39 | All | 53000475K |
| 32 | Retainer, Axle Shaft | 90/95 | C-Clip | All | 5252505 |
| 33 | Axle Shaft Bearing Kit | 90/95 | Includes 27, 28, 32 | All | 8134036K |
| 34 | Cover, Differential Case | 87/95 | Includes 34, 36 | All | 83505125 |
| 35 | Gasket, Differential Cover | 87/95 | Paper | All | 35AXCG |
| 36 | Plug, Differential Cover |
87/95 87/95 |
Rubber, Non-Threaded Steel, Threaded |
All All |
5252504 J4004751 |
| 37 | Differential Cover Kit | 87/95 | Includes 34, 35, 36, Cover Bolts | All | 5252493 |
| 38 | RTV Silicone Sealant | 87/95 | All | J8993317 | |

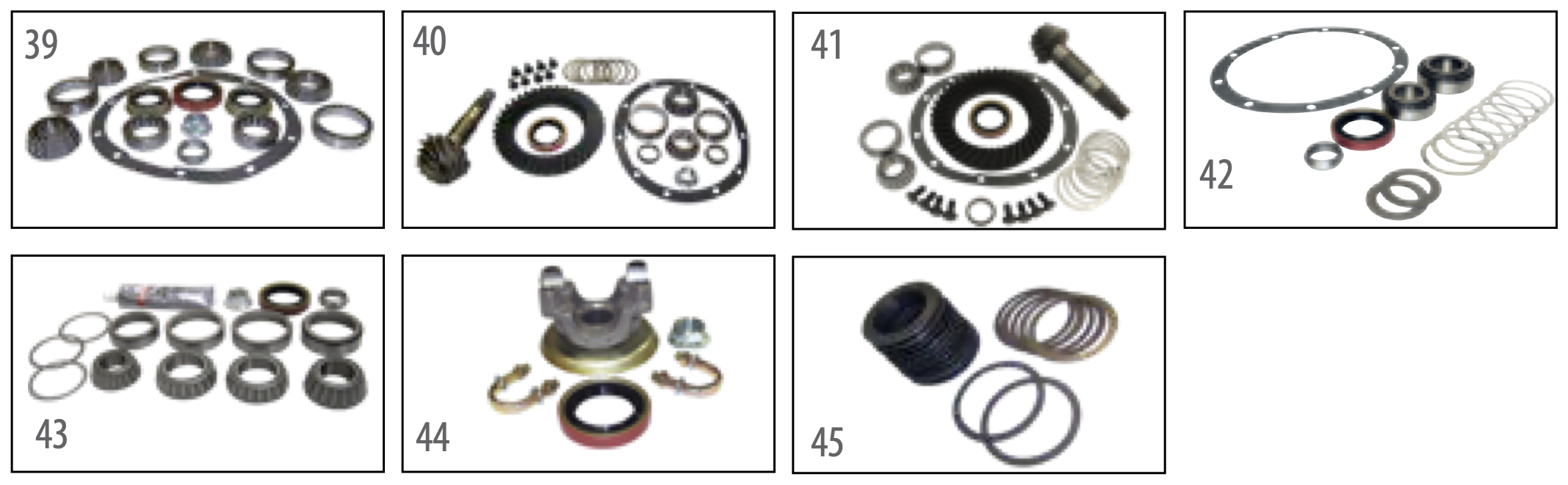

| 39 | Bearing & Seal Master Kit | 90/95 | Includes 2, 14, 15, 17, 18, 21, 27, 28, 35 | All | D35MASKIT |
| 40 | Ring & Pinion Master Kit |
87/95 87/95 87/95 |
Includes 1, 14, 15, 17, 18, 35 Includes 1, 14, 15, 17, 18, 35 Includes 1, 14, 15, 17, 18, 35 |
3.07 3.55 4.11 |
7072441X 7072443X 7072444X |
| 41 | Ring & Pinion | 87/95 | Includes 1, 13, 14, 15, 16, 17, 18, 35 | 4.56 (41-9) | 7072445X |
| 42 | Pinion Bearing & Seal Kit | 87/95 | Includes 14, 15, 17, 18, 35 | All | D35PBK |
| 43 | Pinion & Carrier Bearing Kit | 87/95 | Includes 2, 3, 15, 16, 17, 18, 21, 38 | All | 3171166K |
| 44 | U-Bolt Yoke Kit | 87/95 | w/ 3.219" U-Joint Length | All | D35YOKEUBK |
| 45 | Pinion & Differential Shim Kit | 87/95 | Includes 3, 16 | All | 5017214AA |
