Dana 44 Rear Axle
1987-1995 YJ Wrangler

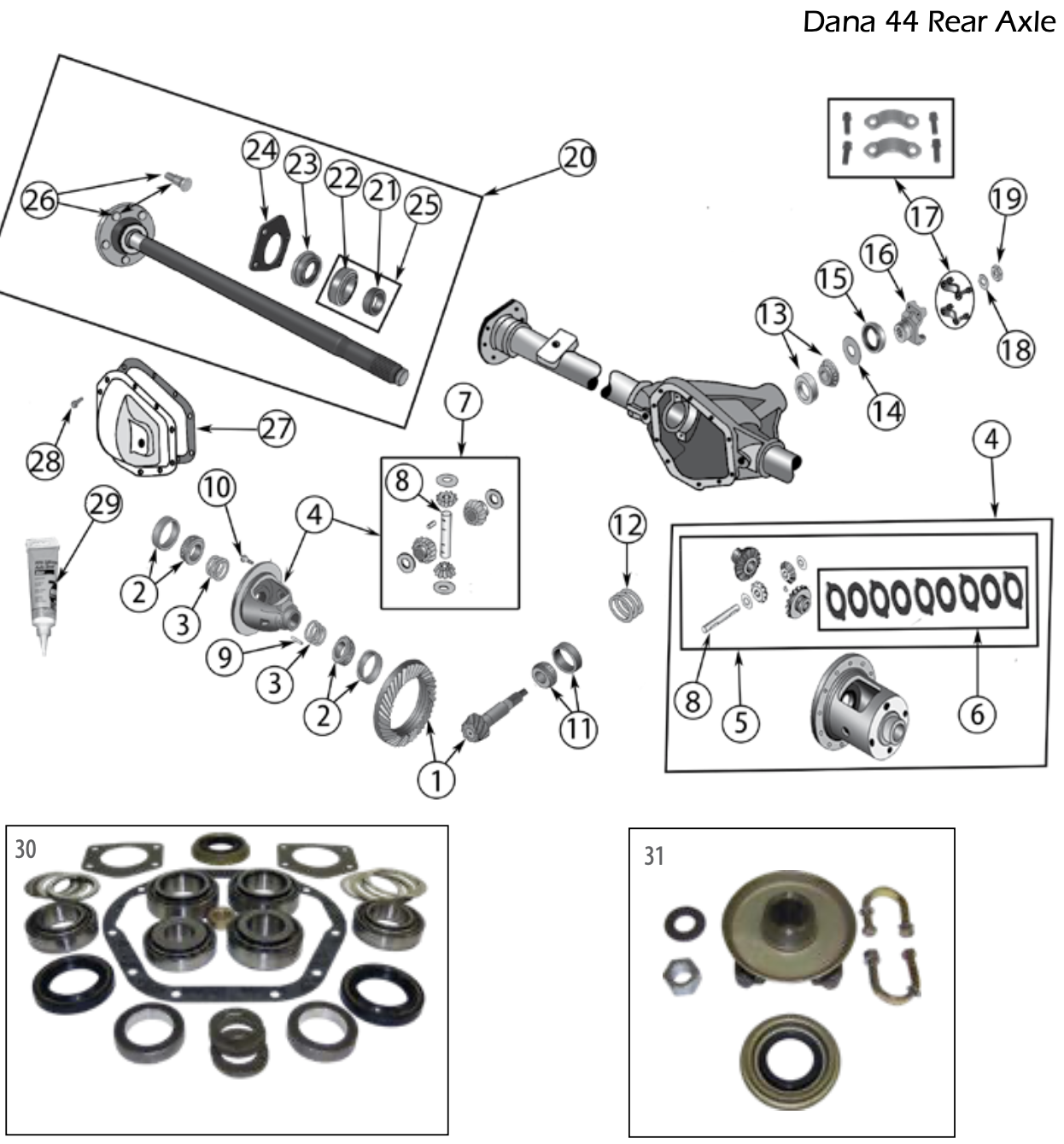

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Comments | Ratio | Part No. |
|---|---|---|---|---|---|
| 1 | Ring & Pinion Set |
87/93 87/95 91/95 91/95 |
Incls. 1, 10, 18, 19 Incls. 1, 10, 18, 19 Incls. 1, 2, 3, 10, 14, 15, 18, 19, 27 Incls. 1, 2, 3, 10, 14, 15, 18, 19, 27 |
3.07 (43/14) 3.54 (46/13) 4.09 (45/11) 3.07 |
83504197 4137749 J8129225 J8129224 |
| 2 | Bearing Set, Differential | 87/95 | Incls. 2 Bearings & 2 Cups | All | J8124071 |
| 3 | Shim Set, Carrier | 87/95 | Incls. 3, 29 | All | J8129222 |
| 4 | Case Assembly, Differential |
87/95 87/95 91/95 |
Standard; Incls. #4 only Trac-Lok; Incls. 2, 3, 4, 10, 27, 29 Trac-Lok; Incls. 2, 3, 4, 10, 27, 30 |
3.73 & Lower 3.73 & Lower 4.09 |
J0994341* 83505431 4741098* |
| 5 | Gear Set, Differential | 87/95 | Trac-Lok; Shaft Held w/ Roll Pin | All | 83505432 |
| 6 | Disc Kit, Differential | 87/95 | Trac-Lok | All | J0994345 |
| 7 | Gear Set, Differential | 87/95 | Standard | All | 83503068 |
| 8 | Shaft, Differential | 87/95 | Standard or Trac-Lok | All | 83503069 |
| 9 | Pin, Differential Shaft | 87/95 | Standard or Trac-Lok; Roll Type | All | J0636360 |
| 10 | Bolt, Ring Gear |
91/95 87/95 |
Each Incls. 10 Bolts |
All All |
J0649454 4720891 |
| 11 | Bearing Kit, Pinion | 87/95 | Inner | All | J8124051 |
| 12 | Shim Set, Pinion | 87/95 | Incls. #s 3, 18, 19, 27 | All | J8129221 |
| 13 | Bearing Kit, Pinion | 87/95 | Outer | All | J8124052 |
| 14 | Slinger, Pinion | 87/95 | All | J0636566 | |
| 15 | Seal, Pinion | 87/95 | All | 83503390 | |
| 16 | Yoke, Pinion |
87/95 94/95 |
3" Long 3.7" Long |
All All |
83503388 4797689 |
| 17 | Strap & Bolt Kit, U-Joint |
87/95 87/95 |
Hex Head Bolts 12-Point Head Bolts |
All All |
4006698K 4006928K |
| 18 | Washer, Yoke | 87/95 | All | J4004913 | |
| 19 | Nut, Pinion | 87/95 | All | J0801367 | |
| 20 | Axle Shaft Assembly |
87/95 87/95 |
R (29.75"); Incls. 21, 22, 23, 24, 26 L (29.25"); Incls. 21, 22, 23, 24, 26 |
All All |
83504960 83504961 |
| 21 | Retaining Ring, Axle Shaft | 87/95 | All | 83503077 | |
| 22 | Bearing, Axle Shaft | 87/95 | All | 83503064 | |
| 23 | Seal, Axle Shaft | 87/95 | All | 83503063 | |
| 24 | Retainer, Axle Shaft | 87/95 | All | 83504190 | |
| 25 | Bearing & Retainer Kit, Axle Shaft | 87/95 | Incls. 21, 22 | All | 994262K |
| 26 | Stud, Wheel | 87/95 | All | 83503053 | |
| 27 | Gasket, Differential Cover | 87/95 | Paper | All | J8122409 |
| 28 | Bolt, Differential Cover | 87/95 | All | J0273573 | |
| 29 | RTV Silicone Sealant | 87/95 | All | J8993317 | |
| 30 | Bearing & Seal Master Kit | 87/95 | Incls. 2, 3, 11, 12, 13, 15, 19, 21, 22, 23, 24, 27, 29 | All | D44YMASKIT |
| 31 | U-Bolt Yoke Kit | 87/95 | Incls. 2 U-Bolts, 15, 16, 18, 19 | All | D3044YOKEUBK |
* This part is not currently carried by Crown Automotive
