Driveshaft
1987-1995 YJ Wrangler

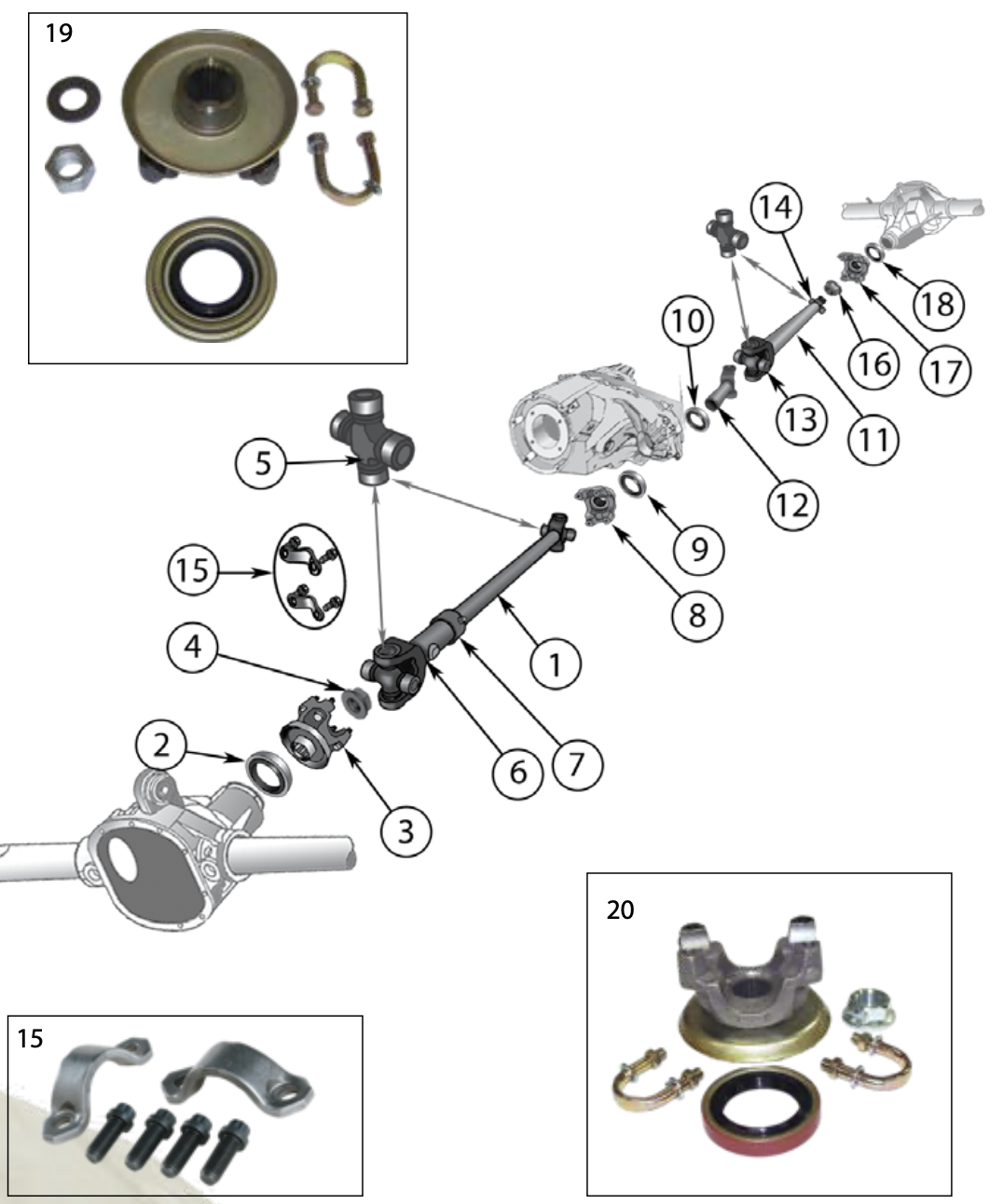

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Location | Comments | Part No. |
|---|---|---|---|---|
| 1 | Drive Shaft Front |
Front Front |
w/ 2.5L Engine; 38" Collapsed w/ 4.2L, 4.0L Eng. w/ Man. Trans.; 39.5" Collapsed w/ 4.2L, 4.0L Eng. w/ Auto. Trans.; 38" Collapsed |
53004369 53002001 53004369 |
| 2 | Seal, Pinion Front |
Front Front |
w/o Slinger On Yoke |
J0998092 83503390 83503390 |
| 3 | Yoke, Pinion Front |
Front |
w/o Slinger w/ Slinger |
J8131656 83503388 |
| 4 | Nut, Pinion Front | J0801367 | ||
| 5 | U-Joint, Drive Shaft Front |
Front Front |
Sealed Greasable Greasable, Spicer |
4882793 J8126614 8126614SP |
| 6 | Slip Yoke, Drive Shaft Front | J8126400 | ||
| 7 | Seal, Drive Shaft Front | 83501595 | ||
| 8 | Yoke, Transfer Case Front w/ NP207, NP231 Transfer Case | 83502829 | ||
| 9 | Seal, Transfer Case Output Front |
Front |
w/ NP231 Transfer Case w/ NP207 Transfer Case (1987 Only) |
83503147 J8134446 |
| 10 | Seal, Transfer Case Output Rear w/ NP207, NP231 Transfer Case | 4638904 | ||
| 11 | Drive Shaft Rear w/ Man. Trans.; w/ NP213 Transfer Case | 52098218* | ||
| 12 | Slip Yoke, Drive Shaft Rear | 83502855 | ||
| 13 | U-Joint, Drive Shaft Rear |
Rear Rear |
Front Joint; Sealed Front Joint; Greasable Front Joint; Greasable, Spicer |
4882793 J8126614 8126614SP |
| 14 | U-Joint, Drive Shaft Rear |
Rear Rear Rear Rear |
Rear Joint; w/ 3.219" Wide U-Joint; Sealed; 1310 Series Rear Joint; w/ 3.219" Wide U-Joint; Greasable; HD 1310 Series Rear Joint; w/ 3.219" Wide U-Joint; Greasable; Spicer; 1310 Series Rear Joint; w/ 3.625" Wide U-Joint; Greasable; 1330 Series Rear Joint; w/ 3.625" Wide U-Joint; Sealed; 1330 Series |
4882793 J8126614 8126614SP 5014733AA 4746936 |
| 15 | Strap & Bolt Kit, U-Joint F or R |
F or R |
Hex Head Bolts 12-Point Head Bolts |
4006698K 4006928K |
| 16 | Nut, Pinion Rear |
Rear |
w/ Dana 35 w/ Dana 44 |
J3182601 J0801367 |
| 17 | Yoke, Pinion Rear |
Rear Rear |
w/ Dana 35; 2.97" Height w/ Dana 35; 3.60" Height w/ Dana 44; 3.70" Height |
83503318 4746835 4797689 |
| 18 | Seal, Pinion Rear |
Rear |
w/ Dana 35 w/ Dana 44 |
83504946 83503390 |
| 19 | U-Bolt Yoke Kit F or R w/ Dana 30 Front or Dana 44 Rear Axle | D3044YOKEUBK | ||
| 20 | U-Bolt Yoke Kit Rear w/ Dana 35 Rear Axle | D35YOKEUBK |
* This part is not currently carried by Crown Automotive
