Drivetrain • Body Components
1987-1995 YJ Wrangler

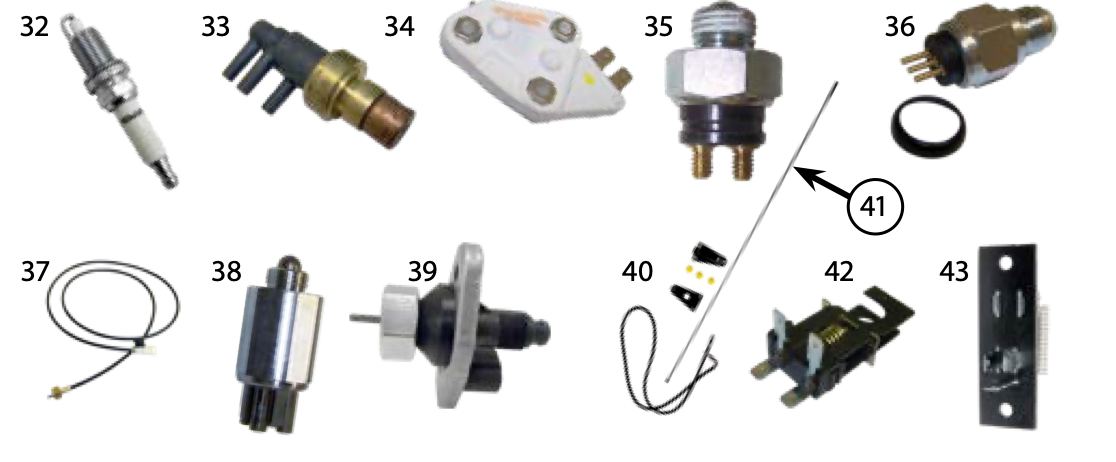

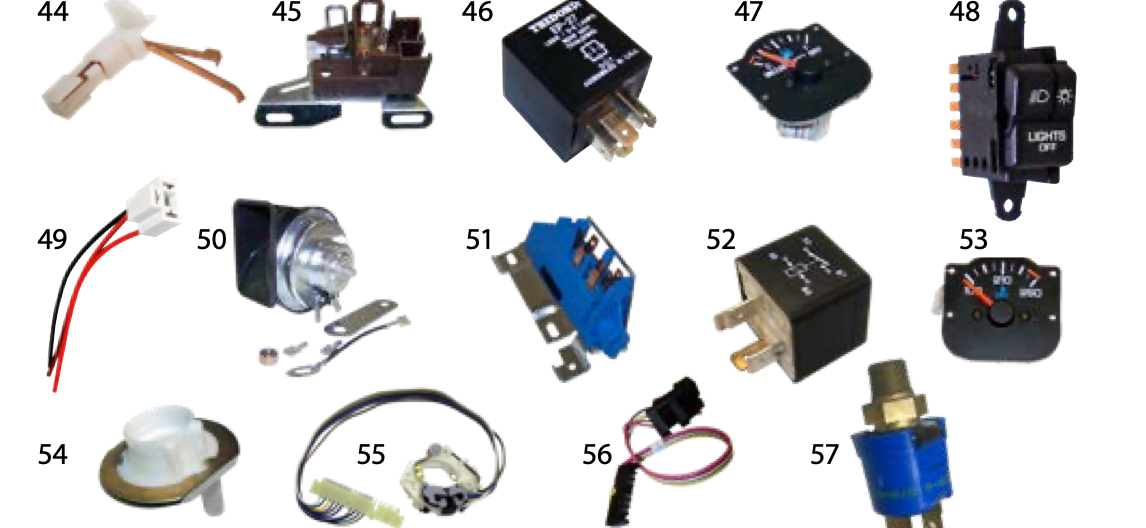

Item numbers match the diagrams. Each part number searches Amazon for that Crown part.
| Item # | Description | Year | Engine | Comments | Part No. |
|---|---|---|---|---|---|
| 32 | Spark Plug |
87/90 87/90 91/95 |
2.5L, 4.2L 2.5L 2.5L, 4.0L |
w/Carburetor; Champion RFN14LY w/ Fuel Injection; Champion RC12LYC Champion RC12LYC |
4318138 56027275 56027275 |
| 33 | Thermal Vacuum Switch | 87/90 | 2.5L | Export Only w/ Carburetor | J3237457 |
| 34 | Voltage Regulator | 87/90 | 2.5L, 4.2L | J8125176 | |
| Drivetrain Components | |||||
| 35 | Backup Lamp Switch |
87/90 87/95 |
All All |
w/ BA10/5 Transmission w/ AX4, AX5, AX15 Transmissions |
53004522 83500629 |
| 36 | Neutral Safety Switch | 87/95 | All | w/ A999, 30RH, 31RH, 32RH Transmissions | 3747361 |
| 37 | Speedometer Cable |
87/90 87/90 88/90 91/92 91/93 |
All All All All All |
w/o Speed Control; 97" Long w/ Manual Trans. w/ Speed Control (Lower) w/ Automatic Trans. w/ Speed Control (Lower) w/ Speed Control (Lower) w/o Speed Control; 78" Long |
53005084 53005085 53005085 53005085 4897801AA |
| 38 | Transfer Case Vacuum Switch | 87/95 | All | w/ NP207 or NP231 Transfer Case | 53001101 |
| 39 | Vehicle Speed Sensor |
90/91 92/95 |
All All |
2 Terminal Connection 3 Terminal Connection |
56027015 5013660AA |
| Body Components | |||||
| 40 | Antenna Kit |
87/95 87/95 |
All All |
Black Chrome |
82200683K 8127842K |
| 41 | Antenna Mast | 87/95 | All | Stainless | J8993415 |
| 42 | Brake Light Switch |
87/90 87/90 91/95 |
All All All |
w/ Cruise Control w/o Cruise Control |
J3225787 J3215938 56006247 |
| 43 | Blower Motor Resistor | 92-95 | All | 55035958 | |
| 44 | Buzzer Switch |
87/95 87/95 |
All All |
w/o Tilt Wheel w/ Tilt Wheel |
J3211423* J3211424* |
| 45 | Dimmer Switch |
87/88 89/95 |
All All |
w/ Column Shift |
J3239703 56003406 |
| 46 | Flasher |
87/90 93/95 |
All All |
2 Blade - 552 (Replaces 224) 4-Lamp System (Europe) |
J5452266 56007348 |
| 47 | Fuel Gauge | 92/95 | All | Reads "Unleaded Fuel Only" | 56004879 |
| 48 | Headlight Switch | 87/95 | All | 56003119 | |
| 49 | Headlight Wiring Repair Harness | 87/95 | All | High Temperature Rated | 998475HT |
| 50 | Horn |
87/90 87/95 |
All All |
Low Pitch High Pitch |
83502833 56002378 |
| 51 | Ignition Switch |
87/95 87/95 |
All All |
w/o Tilt Wheel w/ Tilt Wheel |
J8128889 J3250575 |
| 52 | Relay |
87/93 91/95 |
All All |
Mini SPST Mini SPDT (Starter) |
4504215 56002958 |
| 53 | Temperature Gauge | 92/95 | All | USA, Fahrenheit | 56004881 |
| 54 | Turn Signal Cam |
87/95 87/95 |
All All |
w/o Tilt Wheel w/ Tilt Wheel |
J4487711 4487816 |
| 55 | Turn Signal Switch |
87/93 94/95 |
All All |
|
56002011 56007255 |
| 56 | Wiper Switch |
87/95 87/95 |
All All |
w/ Floor Shift w/o Int. Wiper w/o Tilt Wheel w/ Intermittent Wiper w/ Tilt Wheel |
56000031 56007299 |
| 57 | Power Steering Pressure Switch | 87/95 | All | 53000970* | |
* This part is not currently carried by Crown Automotive
