Frame & Related
1987-1995 YJ Wrangler

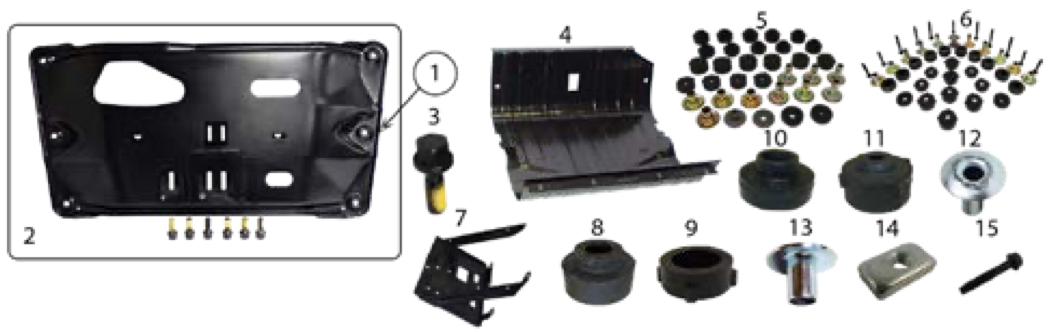

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Position | Years | Comments | Part No. |
|---|---|---|---|---|---|
| 1 | Transmission Crossmember | 87/95 | Skid Plate | 52003960 | |
| 2 | Transmission Crossmember Kit | 87/95 | Includes Transmission Crossmember and 6 Bolts | 52003960K | |
| 3 | Crossmember Bolt Crossmember Bolt Kit |
|
87/95 87/95 |
6 Required; 1/2"-13 X 1.25" Conical Seat Hex Bolt Includes 6 1/2"-13 X 1.25" Conical Seat Hex Bolts |
6035836 6035836K6 |
| 4 | Fuel Tank Skid Plate | 87/90 | w/ 15 Gallon Fuel Tank | J5357023 | |
| 5 | Body Mount Kit | 87/95 | w/ Steel Body; Includes 11 Sleeves & 22 Mounts for Body & Grille | 52002723K | |
| 6 | Body Mount Master Kit | 87/95 | w/ Steel Body; Includes Item #5 & Body Mount Bolts | 52002723MK | |
| 7 | Battery Tray | 91/95 | Black | 55345013 | |
| 8 | Body Mount Bushing | L or R | 87/95 | Upper; Passenger Compartment; 6 Required | 52002008 |
| 9 | Body Mount Bushing | L or R | 87/95 | Lower; Grille and Cargo Area; 4 Required | 52002659 |
| 10 | Body Mount Bushing | L or R | 87/95 | Upper; Grille and Cargo Area; 4 Required | 52002660 |
| 11 | Body Mount Bushing | L or R | 87/95 | Lower; Passenger Compartment; 6 Required | 52002723 |
| 12 | Body Mount Sleeve | L or R | 87/95 | Passenger Compartment; 6 Required | 52001961 |
| 13 | Body Mount Sleeve | L or R | 97/95 | Cargo Area; 4 Required | 52002661 |
| 14 | Hard Top Nut | L or R | 87/95 | 6 Required | 6506825AA |
| 15 | Body Mount Bolt |
L or R L or R |
87/95 87/95 |
5 Required; Flanged Grade 8 6 Required; Flanged Grade 8 |
J4007570 J4007571 |
