Fuel Tank / Throttle Body
1987-1995 YJ Wrangler

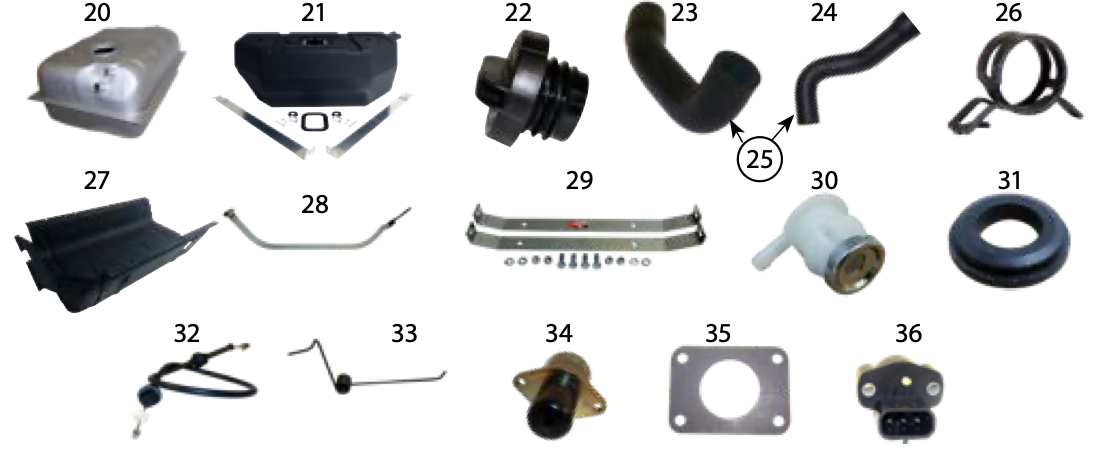

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Engine | Comments | Part No. |
|---|---|---|---|---|---|
| Fuel Tank & Related | |||||
| 20 | Fuel Tank |
87/90 87/90 87/90 87/95 |
2.5L 4.2L All All |
w/ Fuel Injection; 15 Gallons; Steel 15 Gallons; Steel 15 Gallons; Plastic 20 Gallons; Plastic |
83502961 83502960 83502960PL 52002633PL |
| 21 | Fuel Tank Kit | 87/95 | All | 20 Gallons; Plastic; For EFI or Carbureted Engines ** | 52002633PLK |
| 22 | Fuel Filler Cap |
87/90 87/90 91/95 91/95 |
All All All All |
Non-Locking Locking w/ Coded Cylinder, w/ Keys Locking w/ Coded Cylinder, w/ Keys Non-Locking |
52003768 J5350828 82400041 52003774 |
| 23 | Fuel Filler Hose |
87/90 91/95 |
All All |
w/ 20 Gallon Tank w/ 93" Wheelbase w/ 93" Wheelbase |
52040079 52040079 |
| 24 | Fuel Vent Hose |
87/90 91/95 |
All All |
w/ 20 Gallon Tank w/ 93" Wheelbase w/ 93" Wheelbase |
52040081 52040081 |
| 25 | Fuel Filler & Vent Hose Set |
87-90 91-95 |
All All |
w/ 20 Gallon Tank w/ 93" Wheelbase |
52040079K 52040079K |
| 26 | Fuel Vent Hose Clamp | 87/95 | All | To Filler Tube; 23mm X 15mm Constant Tension Style | 32003300AB |
| 27 | Fuel Tank Skid Plate |
87/90 87/95 |
All All |
w/ 15 Gallon Tank w/ 20 Gallon Tank |
J5357023 52006870 |
| 28 | Fuel Tank Strap |
87/90 91/95 |
All All |
w/ 20 Gallon Tank; Left or Right; 2 Required Left or Right; 2 Required |
J5356651 J5356651 |
| 29 | Fuel Tank Strap Kit |
87/90 87/90 |
All All |
w/ 15 Gallon Tank; Left and Right Straps & Hardware w/ 15 Gallon Tank; Left, Right, & Center Straps |
CJGTSE1 5356651K |
| 30 | Fuel Tank Vent Valve | 87/95 | All | J5360058 | |
| 31 | Fuel Vapor Valve Seal |
87/90 91/95 |
All All |
w/ 20 Gallon Tank |
52018823 52018823 |
| Throttle Body & Related | |||||
| 32 | Accelerator Cable |
87/90 87/90 87/90 91/95 |
2.5L 2.5L 4.2L All |
w/ Fuel Injection w/ Carburetor |
53005206 52040430 53005207 52079382 |
| 33 | Accelerator Pedal Return Spring | 87/95 | All | J3193369 | |
| 34 | Idle Air Control Valve |
87/90 91/95 91/95 |
2.5L 2.5L 4.0L |
|
83502375 4637073 4637071 |
| 35 | Throttle Body Gasket |
87/90 91/95 |
2.5L EFI 2.5L, 4.0L |
|
53002154 53007543 |
| 36 | Throttle Position Sensor | 91/95 | 2.5L, 4.0L | 4626051 | |
**Includes Fuel Tank, Upper Straps, Sending Unit Gasket, 2 Vent Valves, and 2 Vapor Seals
