HVAC
1987-1995 YJ Wrangler

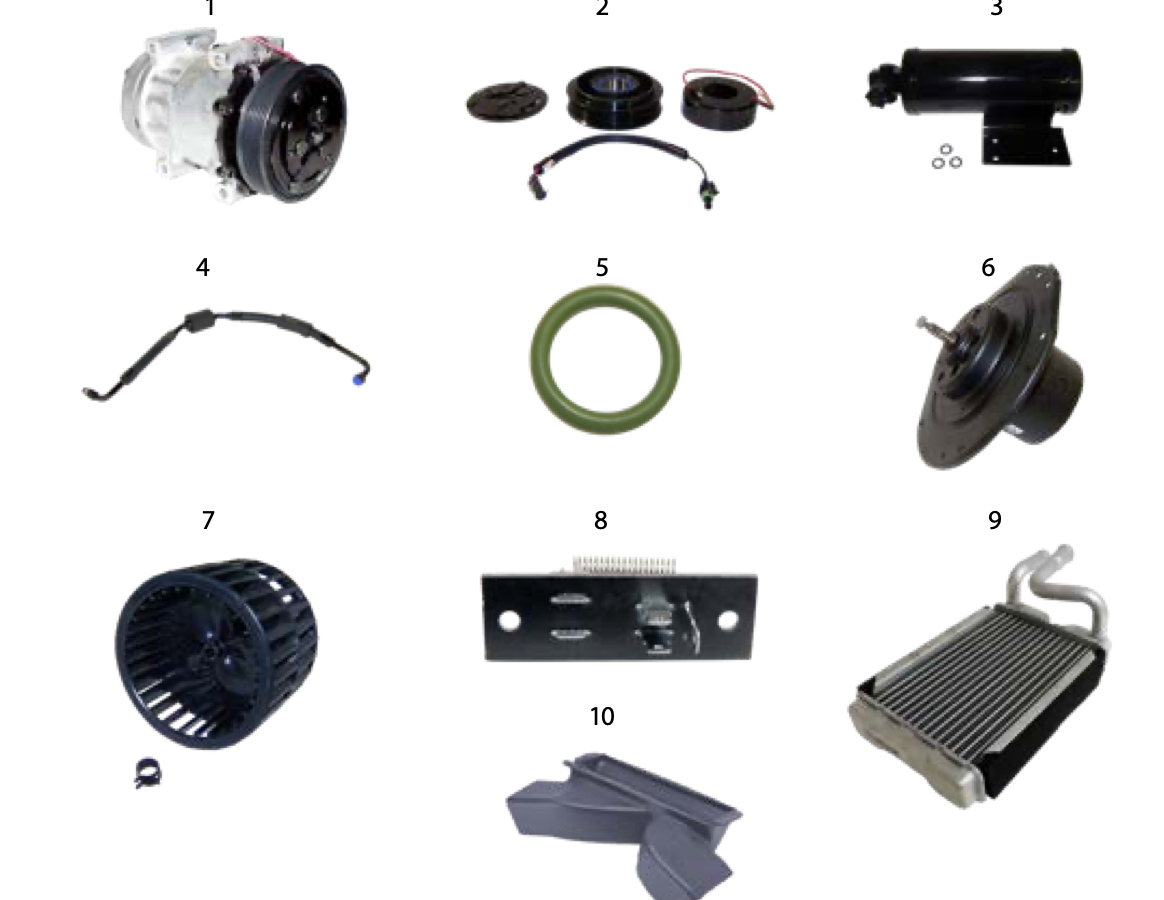

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item# | Description | Years | Engine | Comments | Part No. |
|---|---|---|---|---|---|
| 1 | A/C Compressor |
91/93 94/95 |
4.0L 4.0L |
Until 12/23/1993; w/ Factory A/C w/ R12 |
56004354 56004354 |
| 2 | A/C Compressor Clutch |
87/90 91/93 94/95 |
2.5L 4.0L All |
w/ Wide Compressor Head Until 12/23/1993; w/ Factory A/C w/ R12 |
4778022 4637001 4637001 |
| 3 | Receiver Drier |
87/94 94/95 |
All All |
w/ R12 w/ R134A |
4773764 4797003 |
| 4 | A/C Hose | 87/90 | 2.5L | Factory A/C | 56002950 |
| 5 | A/C Line O-Ring | 94/95 | All | 1/2" Green A/C Liquid Line | 4741705 |
| 6 | Blower Motor |
87/90 87/92 91/95 |
All All All |
Larger Than OE; Modification Necessary A/C Blower Motor; 4 Wires Heater |
56001449 J8126691 55035565 |
| 7 | Blower Motor Wheel | 87/95 | All | American Air | J8126991 |
| 8 | Blower Motor Resistor | 92/95 | All | 55035958 | |
| 9 | Heater Core | 87/95 | All | 56001459 | |
| 10 | Interior Floor Duct | 87/95 | All | 55035618 |
