Lighting
1987-1995 YJ Wrangler

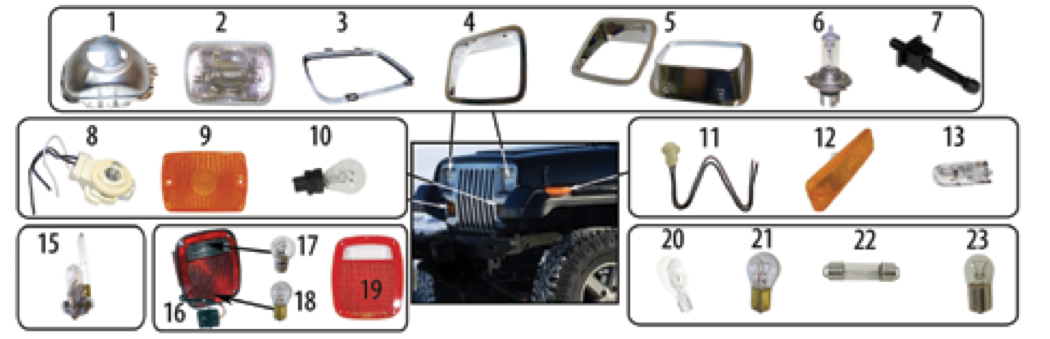

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Position | Notes | Part No. |
|---|---|---|---|---|---|
| Front | |||||
| 1 | Headlight Seat |
87/95 87/95 |
Left Right |
LHD; USA & Canada Only LHD; USA & Canada Only |
56001279 56001278 |
| 2 | Headlight |
87/95 91/95 |
L or R L or R |
USA & Canada; H6054 Sealed Beam Export or KDX Only; Bulb Not Included |
J8134319 56006212 |
| 3 | Headlight Retainer | 87/95 | L or R | Chrome | 56001260 |
| 4 | Headlight Bezel |
87/95 87/95 |
Left Right |
Chrome; USA & Canada Only Chrome; USA & Canada Only |
56003105 56003104 |
| 5 | Headlamp Bezel Kit | 87/95 | L & R | Chrome; USA & Canada Only | 56003104K |
| 6 | Headlight Bulb | 87/95 | L or R | Europe; White H4 Bulb, 60 Watts | L00H460W |
| 7 | Headlamp Adjusting Screw | 87/95 | L or R | Horizontal & Vertical Adjustment | 55054844 |
| 8 | Parking Light Socket | 87/93 | L or R | USA & Canada | J8128931 |
| 9 | Parking Light |
87/93 87/95 87/95 |
L or R Left Right |
USA & Canada; w/ Amber Lens; Bulb or Pigtail Not Included Export Only Export Only |
56001378 56003011 56003010 |
| 10 | Turn Signal, Parking Light Bulb |
87/93 94/95 94/95 |
L or R L or R L or R |
2057 Clear Bulb 3157 Clear Bulb 3157 Long Life Clear Bulb |
9438848 L0003157 L003157KLC |
| 11 | Side Marker Socket Side Marker Socket Kit |
87/95 87/95 |
L or R L or R |
Includes Socket w/ Wiring Includes 1 Side Marker Socket w/ Wiring & Bulb |
J5455853 5455853K |
| 12 | Side Marker Light |
87/95 87/95 87/95 |
L or R L or R L or R |
w/ Amber Lens; USA & Canada w/ Amber Lens; Export Only w/ Clear Lens; Bulb or Pigtail Not Included |
56001424 56003100 56001424C |
| 13 | Side Marker Bulb |
87/95 87/95 |
L or R L or R |
194 White Bulb w/ Clear Lamp Kit; 194A Amber Bulb |
L0000194 L00194NA |
| 14 | Side Repeater Light | 87/95 | L or R | Amber Lens; Export Only (Not Pictured) | 55055014 |
| 15 | Fog Lamp Bulb | 94/95 | L or R | H3 Bulb w/ Blade Type Connector | 4728646 |
| Rear | |||||
| 16 | Tail Light |
87/90 87/90 91/95 91/95 87/95 |
Left Right Left Right L or R |
USA & Canada; w/ License Plate Lamp USA & Canada; w/o License Plate Lamp USA & Canada; w/ License Plate Lamp USA & Canada; w/o License Plate Lamp Europe |
56002135 56002134 56016721 56016720 J5764204 |
| 17 | Bulb | 87/95 | L or R | Turn Signal, Parking Light, & Brake Light; 1157 White Bulb | J3209544 |
| 18 | Reverse Bulb | 87/95 | L or R | 1156 White Bulb | J3209543 |
| 19 | Tail Light Lens |
87/95 87/95 |
L or R L or R |
USA & Canada Europe |
J8129642 83501003 |
| 20 | High Mount Brake Light Bulb | 94/95 | L & R | 921 Incandescent White Bulb | L0000921 |
| 21 | License Plate Light Bulb | 87/95 | 1156 White Bulb | J3209543 | |
| Miscellaneous & Interior Bulbs | |||||
| 22 | Dome Light Bulb | 87/93 | 212-2 Bulb | J8128482 | |
| 23 | Courtesy Light Bulb Engine Compartment Light Bulb |
87/95 94/95 |
|
89 White Bulb 105 White Bulb |
L0000089 L0001003 |
