Steering
1987-1995 YJ Wrangler

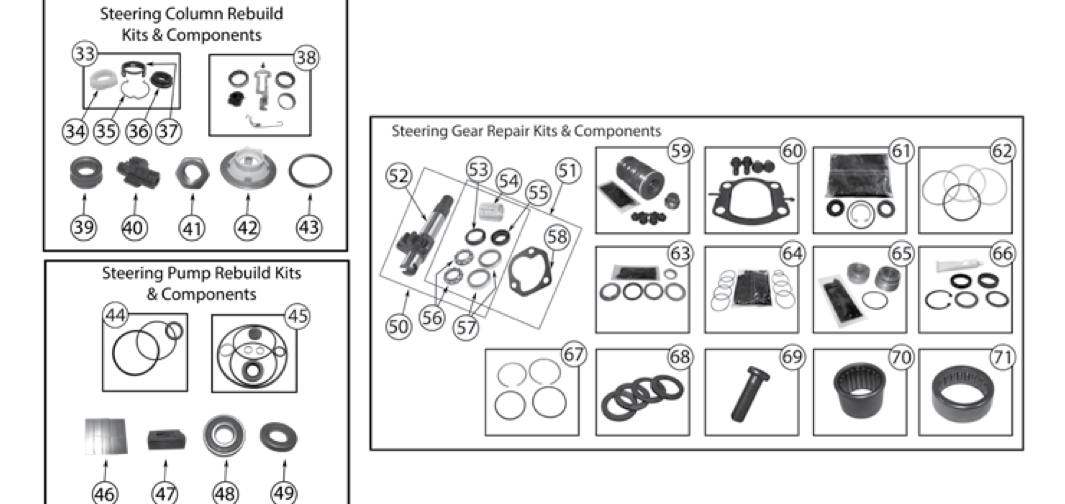

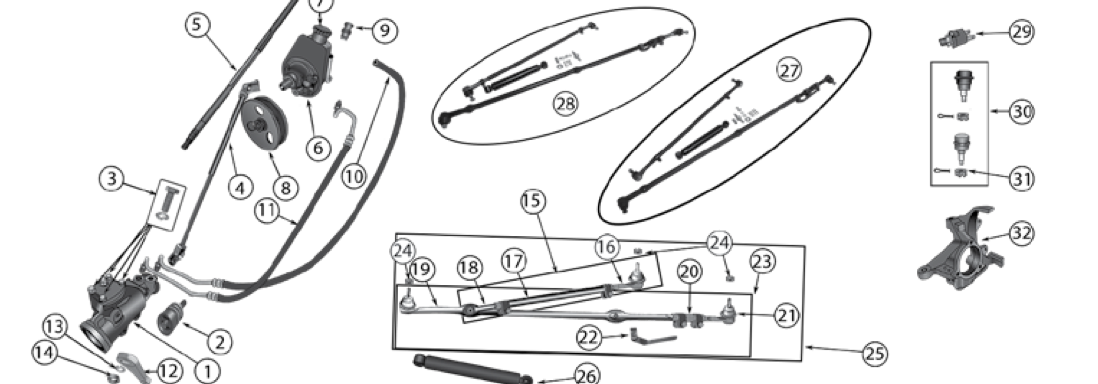

Item numbers match the diagrams. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Position / Comments | Part No. |
|---|---|---|---|---|
| 1 | Steering Gear Assembly |
87/95 94/95 87/95 |
LHD; w/ Power Steering; Remanufactured RHD; w/ Power Steering LHD; w/ Manual Steering |
52002085R 52006511 52000089 |
| 2 | Steering Gear Input Shaft & Spool Valve | 92/95 | w/ Power Steering | 4713066 |
| 3 | Steering Gear Cover Bolt & Washer | 87/95 | w/ Power Steering | J8124191 |
| 4 | Steering Shaft | 87/95 | Lower; w/ Power Steering; Includes Hardware | 52007017 |
| 5 | Steering Shaft | 87/95 | Upper; w/o Tilt w/ Floor Shift | 83502908 |
| 6 | Power Steering Pump |
87/90 94/95 |
w/ 2.5L or 4.2L Engines; Reservoir Included w/ 2.5L Engine; Reservoir Not Included |
33001907 52037566 |
| 7 | Power Steering Reservoir Cap |
87/90 91/93 |
w/ 2.5L Engine |
4694765 52003132 |
| 8 | Power Steering Pump Pulley | 91/95 | w/ 4.0L Engine | 53010085 |
| 9 | Power Steering Pump Flow Control Valve | 91/95 | w/ 4.0L Engine | 83503489 |
| 10 | Power Steering Return Hose |
91/95 91/95 |
Pump to Reservoir; w/ 2.5L, 4.0L Engines Gear to Reservoir; w/ 2.5L, 4.0L Engines |
52005411 52038016 |
| 11 | Power Steering Pressure Hose |
87/90 91/95 87/90 91/95 |
w/ 2.5L Engine w/ 2.5L Engine w/ 4.2L Engine w/ 4.0L Engine |
52040123 52038014 52003687 52037644 |
| 12 | Pitman Arm |
87/95 87/95 |
LHD; w/ Power Steering w/ Manual Steering |
52040112 52040110 |
| 13 | Pitman Arm Lock Washer | 87/95 | S0103336 | |
| 14 | Pitman Arm Nut | 87/95 | w/ Power Steering | J3200501 |
| 15 | Drag Link Assembly |
87/90 91/95 |
Includes 2 Tie Rod Ends & Adjuster w/ Hardware Includes 2 Tie Rod Ends & Adjuster w/ Hardware |
52002700K 52006608K |
| 16 | Tie Rod End |
87/90 91/95 |
Drag Link; at Pitman Arm; w/ Left Hand Threads Drag Link; at Pitman Arm; w/ Left Hand Threads |
52000598 52005741 |
| 17 | Steering Adjuster |
87/90 91/95 |
Drag Link; 25.82" Long; Includes Hardware Drag Link; 24.11" Long; Includes Hardware |
52002700 52006608 |
| 18 | Tie Rod End |
87/90 91/95 |
Drag Link; to Tie Rod; w/ Right Hand Threads Drag Link; to Tie Rod; w/ Right Hand Threads |
52000599 52005740 |
| 19 | Tie Rod End |
87/90 91/95 |
Tie Rod; Right Side; 46.79" Long Tie Rod; Right Side; w/ LHD, 45.75" Long |
52002540 52006602 |
| 20 | Steering Adjuster | 87/95 | Tie Rod; 4.5" Long, Includes Hardware | 52002544 |
| 21 | Tie Rod End |
87/90 91/95 |
Tie Rod; Left Side; .25" Long; w/ Left Hand Threads Tie Rod; Left Side; w/ Left Hand Threads |
52002541 52005739 |
| 22 | Tie Rod Bar | 87/95 | 52002547 | |
| 23 | Tie Rod Assembly |
87/90 91/95 |
Includes 2 Tie Rod Ends & Adjuster w/ Hardware LHD; Includes 2 Tie Rod Ends & Adjuster w/ Hardware |
52002541K 52005739K |
| 24 | Tie Rod End Nut | 87/95 | Tie Rod or Drag Link to Knuckle or Pitman Arm | J0274428 |
| 25 | Steering Assembly | 94/95 | w/ RHD; Includes Tie Rod Assy. & Drag Link Assy. | 55036772* |
| 26 | Steering Stabilizer | 87/95 | Includes Hardware | 52087827 |
| 27 | Complete Steering Kit | 87/90 | LHD, Includes #s 20, 21, 22 & Hardware | SK3 |
| 28 | Complete Steering Kit | 91/95 | LHD, Includes #s 20, 21, 22 & Hardware | SK4 |
| 29 | Power Steering Pressure Switch | 87/95 | On Pressure Hose | 53000970* |
| 30 | Ball Joint Set | 87/95 | Includes 1 Upper & 1 Lower Ball Joint w/ Hardware | 83500202 |
| 31 | Ball Joint Nut | 87/95 | Lower, Left or Right; 5/8"-18 Threads | J8123318 |
| 32 | Steering Knuckle |
90/95 90/95 |
Left Right |
52067577 52067576 |
| 33 | Steering Shaft Bearing Kit | 87/95 | Includes 2 Bearings, 1 Retainer, & 1 Clip | 4487696K |
| 34 | Steering Shaft Bushing | 87/95 | Front, Upper | J4487696 |
| 35 | Steering Shaft Coupling Spring | 87/95 | Lower | J4487739 |
| 36 | Steering Column Bearing | 87/95 | Lower | J4486713 |
| 37 | Steering Column Bearing Retainer | 87/95 | J4487743 | |
| 38 | Steering Column Bearing Kit | 87/95 | w/ Tilt Column; Includes Rack Kit, Bearings, & Small Parts | 83510055 |
| 39 | Steering Column Bearing | 87/95 | Front, Upper; w/o Tilt; Steering Column Upper Bearing Assembly | J8127850 |
| 40 | Steering Column Sector | 87/95 | w/o Tilt | J8120097* |
| 41 | Steering Wheel Nut | 87/95 | J4200414 | |
| 42 | Turn Signal Cam |
87/95 87/95 |
w/o Tilt Wheel w/ Tilt Wheel |
J4487711 4487816 |
| 43 | Turn Signal Cam Retaining Ring | 87/95 | 2925062 | |
| 44 | Power Steering Pump Seal Kit | 91/95 | 83501825 | |
| 45 | Power Steering Pump Seal Kit | 87/90 | 83502149* | |
| 46 | Power Steering Pump Vane Kit | 91/95 | w/ 2.5L Engine | 83501827 |
| 47 | Power Steering Reservoir Clip | 91/95 | w/ 4.0L Engine | 52037547 |
| 48 | Power Steering Pump Bearing | 91/95 | Front; w/ Power Steering | 83504034 |
| 49 | Power Steering Pump Seal | 91/95 | w/ Power Steering | 83501814 |
| 50 | Steering Gear Repair Kit | 87/95 | w/ Manual Steering; Includes Sector Shaft, Bearings, & Seals | 8120221K |
| 51 | Steering Gear Bearing & Seal Kit | 87/95 | w/ Manual Steering | 5710618 |
| 52 | Sector Shaft | 87/95 | w/ Manual Steering | J8120221 |
| 53 | Sector Shaft Seal | 87/95 | w/ Manual Steering | J4486140 |
| 54 | Sector Shaft Bushing | 87/95 | w/ Manual Steering | J3200496* |
| 55 | Worm Shaft Seal | 87/95 | w/ Manual Steering | J4486141 |
| 56 | Worm Shaft Bearing | 87/95 | w/ Manual Steering; 2 Required | J3200491 |
| 57 | Worm Shaft Bearing Cup | 87/95 | w/ Manual Steering; 2 Required | J3200492 |
| 58 | Steering Gear Access Cover Gasket | 87/95 | w/ Manual Steering | J0940522 |
| 59 | Steering Gear Rack Kit | 92/95 | w/ Power Steering; Includes Rack, Hardware, & Grease | 4713061 |
| 60 | Steering Gear Access Cover Gasket Kit | 87/95 | w/ Power Steering; Includes Gasket & 4 Bolts | J8125038 |
| 61 | Steering Gear Adjuster Plug Seal Kit | 87/95 | w/ Power Steering | J8130157 |
| 62 | Steering Gear Rack Seal Kit | 87/95 | LHD; w/ Power Steering | J8125039 |
| 63 | Steering Gear Bearing Kit | 87/95 | Located on End of Valve Assembly; w/ Power Steering | J8130152 |
| 64 | Steering Gear Seal Kit | 87/95 | Valve Assembly; LHD; w/ Power Steering | J3204833 |
| 65 | Steering Gear Thrust Repair Kit | 87/95 | w/ Power Steering | 4897000AA |
| 66 | Steering Gear Seal Kit | 87/95 | Sector Shaft; LHD; w/ Power Steering | J8134568 |
| 67 | Steering Gear Seal Kit | 87/95 | End Plug; w/ Power Steering | J8125037 |
| 68 | Steering Gear Cover Shim Kit | 87/95 | w/ Manual Steering | J0940521 |
| 69 | Steering Gear Adjuster Screw | 87/95 | w/ Manual Steering | J4486135 |
| 70 | Sector Shaft Bearing | 87/95 | w/ Power Steering | J4487154 |
| 71 | Steering Gear Bearing | 87/95 | Located on Valve Assembly | J8130142 |
* This part is not currently carried by Crown Automotive
