Rear Suspension

1987-1995 YJ Wrangler

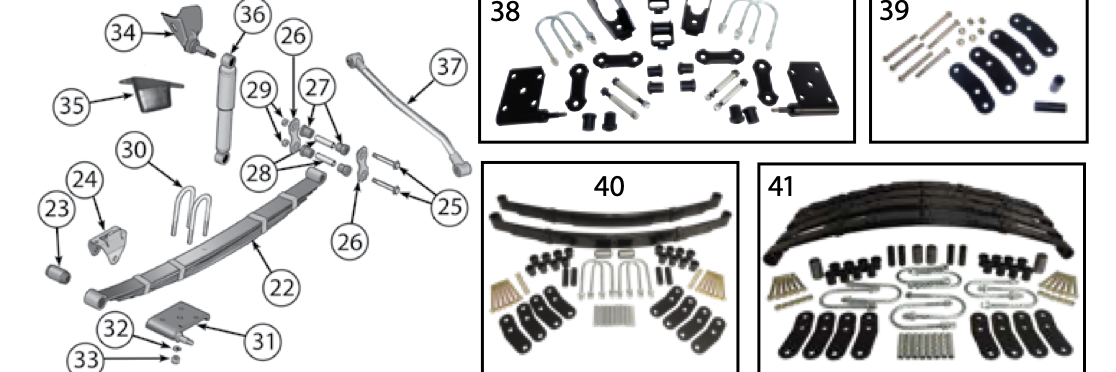

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Years	Position	Comments	Part No.
Rear Suspension
22	Leaf Spring	87/95	Left or Right	Heavy Duty; 6 Leaf; w/o Bushings	52003449
23	Leaf Spring Bushing	87/95	Pivot End		J5355369
24	Leaf Spring Bracket	87/95	Pivot End	Pivot End; Welding Required	52040320
25	Shackle Bolt	87/95	Left or Right		4007393
26	Shackle Plate	87/95	Left or Right		52040415
27	Shackle Bushing	87/95	Left or Right	2 Required Per Eye	52002552
28	Shackle Sleeve	87/95	Left or Right	2 Required Per Shackle	52002553
29	Shackle Nut	87/95	Left or Right	1/2" - 20 Threads	J4004311
30	U-Bolt	87/95	Left or Right	w/ Dana 35; 4 Required; Includes Nuts & Washers; 3.06" Wide	8130369HD
31	Leaf Spring Plate	87/95	Left or Right		52006421
32	Lock Washer	87/95	Left or Right	1/2"	J5350644
33	U-Bolt Nut	87/95	Left or Right	1/2"-20 Threads	JA014709
34	Shock Absorber Bracket	87/95	Left or Right	Frame End; Weld on	52040305
35	Bump Stop	87/95 87/95	Left or Right Left or Right	Large Small	52040007 52002658
36	Shock Absorber	87/95 87/95	Left or Right Left or Right	Standard Heavy Duty	83502867 83502837
37	Track Bar	87/95			52040404
Kits
38	Spring Mount Kit	87/95 87/95	Front Rear	Includes Leaf Spring Brackets, Leaf Spring Plates, U-Bolts, & 2 Standard Duty Shackles w/ Dana 35; Includes Leaf Spring Brackets, Plates, U-Bolts, & 2 Standard Duty Shackles	52040407K 52006421K
39	HD Shackle Kit	87/95	Front or Rear	3/4" Lift; Greasable; Includes 2 Shackles; w/o Bushings	SE04
40	Leaf Spring Kit	87/95 87/95	Front Rear	Includes Heavy Duty Leaf Springs, Pivot Bushings, U-Bolts, & 4 HD Shackles Includes Heavy Duty Leaf Springs, Pivot Bushings, U-Bolts, & 4 HD Shackles	LSK1 LSK3
41	Leaf Spring Kit	87/95	Front & Rear	Includes Heavy Duty Leaf Springs, Pivot Bushings, U-Bolts, & 4 HD Shackles	LSK4
