Bilstein 25-176117 5165 Series Universal Remote Reservoir Shock Absorber

Amazon.com Price:  Original price was: $237.00.Current price is: $212.54. (updated 02/01/2024 17:56 PST- (click for details))

5165 Series 9.5″ Travel 255/70
Shock Absorber Shock

In Stock

SKU: bil-25-176117 Category:


Bilstein 25-176117 5165 shock.

  • Bilstein (25-176117) 5165 Series shock; 9.39″ travel
  • Collapsed length (inches): 14.21
  • Extended length (inches): 23.6
  • Travel (inches): 9.39
  • Upper mount: Eye 16mm (5/8 inch)
  • Lower mount: Eye 16mm (5/8 inch)
  • valve rating: 255/70

This part replaces Bilstein F4-BR5-H611-H0.

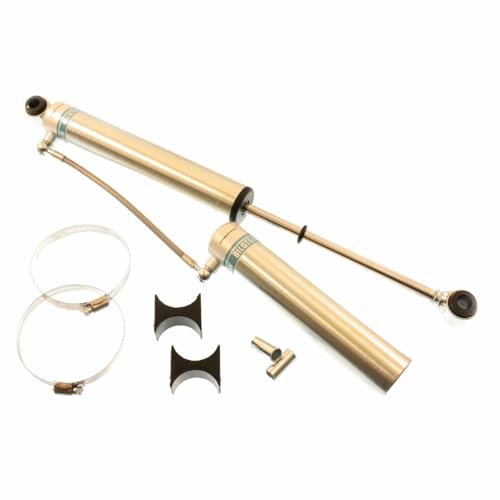

The Bilstein 5165 Remote Reservoir Universal Fit family of shocks are made specifically for custom vehicle builders that need a custom length shock for their project vehicles. This part has 9.39″ of travel, measuring in at 23.6″ expanded and 14.21″ compressed with a 255/70 valve rating. The gas pressurized monotube design with a remote reservoir allow it to run cooler, provide greater suspension travel, and operate more efficiently to help prolong its life. A 46mm digressive piston with a self-adjusting valve adjusts instantly and automatically to varying road conditions providing superior handling and performance across all types of terrain. This shock is intended for custom applications. Bilstein does not market this product for OEM applications and therefore it is the customer’s responsibility for determining the suitability of this product. Sold individually with a reservoir, reservoir mounting kit, black bushings, and installation hardware.
